Product Details
Place of Origin: China
Brand Name: CPET
Model Number: 3008
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 7500dollars/set
Packaging Details: Wooden case packing
Delivery Time: 30 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Quantity Of Load Channels: |
192CH |
Scope Of Load Current: |
0.2-10A/CH |
Load Mode: |
CC+CV Mode |
Quantity Of Load Channels: |
192CH |
Scope Of Load Current: |
0.2-10A/CH |
Load Mode: |
CC+CV Mode |

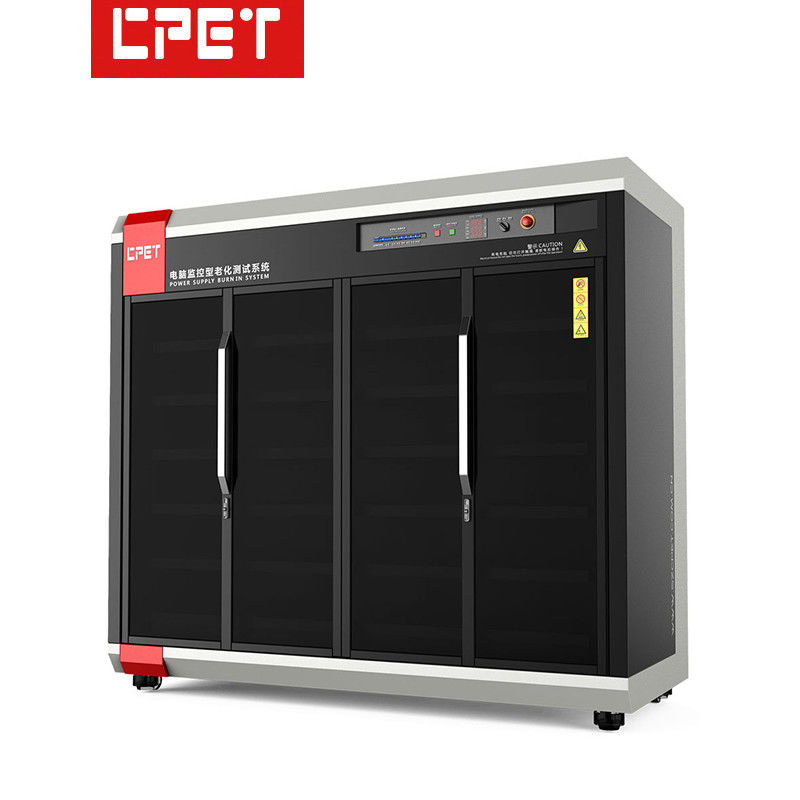

Aging Test Chamber Equipment With Pd Quick Charge Mobile Phone Adapter
| Model | CP-3006 | CP-3008 | CP-3009 | CP-3010 |
| Power of single channel | 200W/CH | 150W/CH | 100W/CH | 65W/CH |
| Quantity of load channels |
192CH | 192CH | 192CH | 192CH |
| Scope of load voltage | 2-100V | 2-100V | 2-100V | 2-100V |
| Scope of load current | 0.2-10A/CH | 0.2-10A/CH | 0.2-10A/CH | 0.2-10A/CH |
| Load precision | ±(1%+0.1%FS) | ±(1%+0.1%FS) | ±(1%+0.1%FS) | ±(1%+0.1%FS) |
| Load Model | Energy Saving | Energy Saving | Energy Saving | Energy Saving |
| Load Mode | CC+CV Mode | CC+CV Mode | CC+CV Mode | CC+CV Mode |
| Number for plies of product zone |
Single side | Single side | Single side | Single side |
| Height for plies of product zone(mm) |
170 | |||
| Width of products zone(mm) |
Series CC mode 340 | |||
| Temperature control of products zone |
Temperature control type of products zone: normal temperature-60℃ | |||
| Structure material of trolley |
Elaborately processed and produced with cold-rolled sheet | |||
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power | |||
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | |||
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design | |||
| Customizable fast charge function |
QC, PO, FCP, SCP, PPS, etc. | |||
| External dimension | 2050*880*1900/custom design | |||
