Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-CNC02
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8550dollars/set
Packaging Details: Wooden case packing
Delivery Time: 40 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Warranty: |
12 Months |
Trolley Size (mm): |
L2050*W700*H2050mm |
Trolley Structure Material: |
Hick Cold Rolled Sheet |
Warranty: |
12 Months |
Trolley Size (mm): |
L2050*W700*H2050mm |
Trolley Structure Material: |
Hick Cold Rolled Sheet |

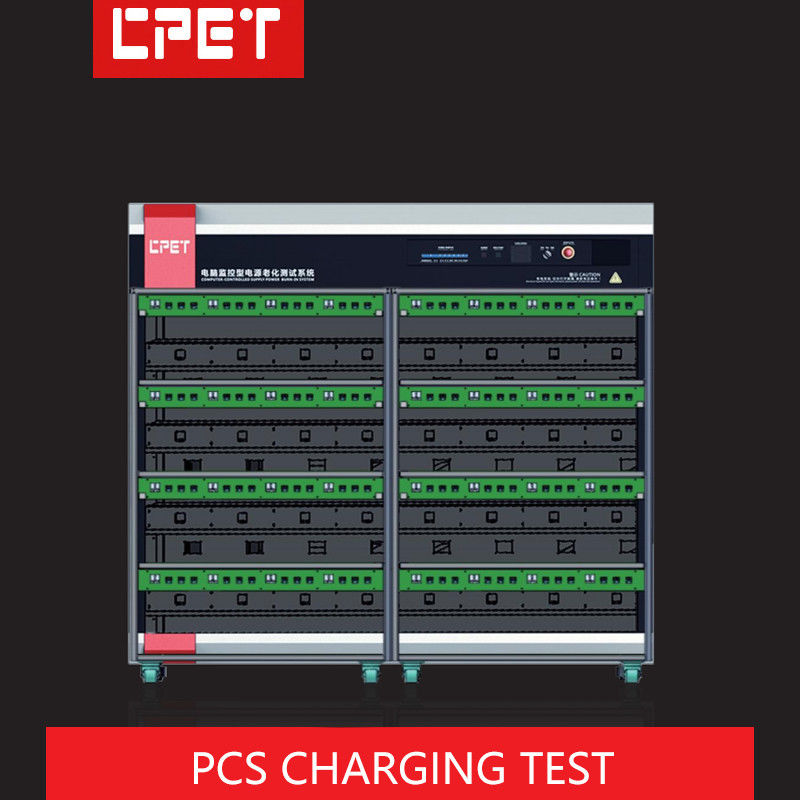

Energy Storage System PCS Machine Charging Aging Cabinet Customization
| Burn-in cabinet structure and Burn-in quantity planning |
Trolley size (mm) | L2050*W700*H2050mm (size of a single Burn-in cabinet) |
| Number of trolley layers | 4 layers, product area depth 400mm, (12 Burn-in positions per layer) | |
| Trolley height | 350mm | |
| Trolley structure material/appearance color | 2.0mm thick cold rolled sheet, computer white | |
| Load area cooling method | Top turbine exhaust fan top row type (easy to control the ambient temperature) | |
| Layer insulation and anti-static method | Epoxy insulation board with heat dissipation holes on the surface | |
| Overall burn-in room structure | Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine | |
| Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quantity |
Energy recovery module control mode | RS485 communication mode, upper computer uses RS232 communication mode |
| Install the power module model | CP8102/CP8104 | |
| Number of energy-consuming load modules installed |
Each layer has 6 4CH modules, and 24 modules need to be installed in the whole burn-in cabinet
|
|
| Install the energy recovery module model | CP8401+CP5312(See specification for details) | |
| Energy recovery module isolation mode |
Electronic load module channel adopts photoelectric isolation (communication and power supply isolation)
|
|
| Number of energy recovery modules installed |
Three 4CH energy recovery modules are installed on each floor, 12 modules need to be installed in the entire burn-in cabinet, and 6 single-phase 5KW inverter modules need to be installed
|
|
| Energy recovery module design architecture |
No relay, long-life design scheme (independent intellectual property rights)
|
|
| Number of burn-in products in the whole cabinet cabinet |
24 energy storage power supplies with eight DC outputs (50W/100V/5A) and AC outputs (220V/500W) are aged in one cabinet
|
