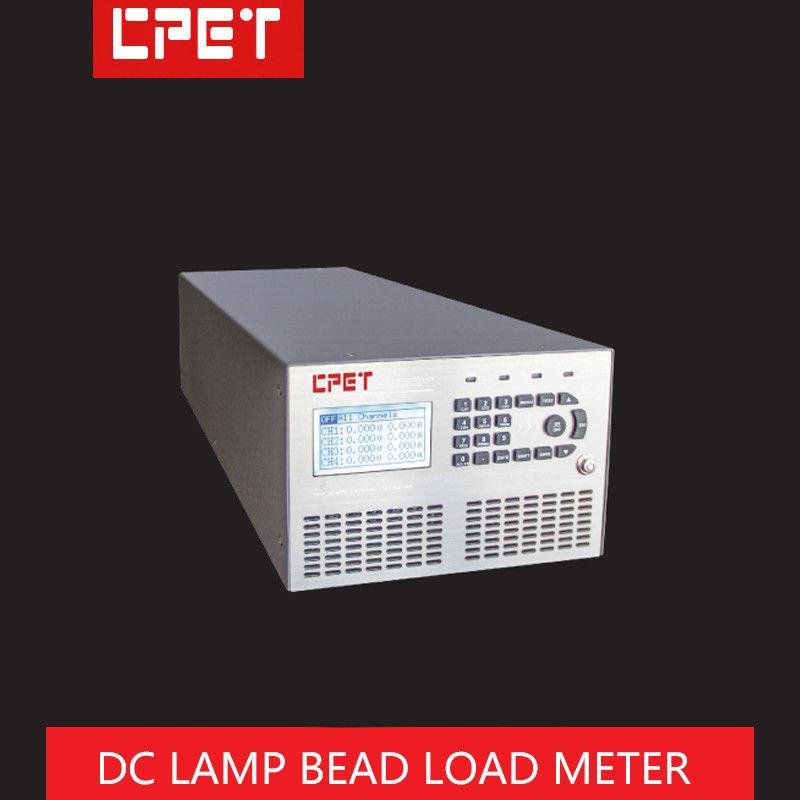

CP8213 Programmable 4 Channel DC Electronic Load For Lamp Bead

Name: CP8213 Programmable 4 Channel DC Electronic Load For Lamp Bead
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: 8213
Price: 350 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: 8213

Payment & Shipping Terms

Minimum Order Quantity: 10sets

Price: 350dollars/set

Packaging Details: Wooden case packing

Delivery Time: 15 work days

Payment Terms: D/A, T/T

Supply Ability: 1000sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                CP8213 electronic load, 4 Channel electronic load, 4 Channel dc electronic load


Warranty Period:	12 Months	Parallel Connection Of Channels:	LED Mode
Maximum Input Power Of Each Channel:	75W

Warranty Period:	12 Months
Parallel Connection Of Channels:	LED Mode
Maximum Input Power Of Each Channel:	75W

Product Description

CP8213 Programmable 4 Channel DC Electronic Load For Lamp Bead

Scope of application

Suitable for function tests of adapter and charger

Function tests of AC/DC and DC/DC power converter

Outstanding functions

1. Be of programmable test mode and support load characteristic test

2. Support PASS signal output and is convenient for test and extensive application

3. Judge status of tested product in accordance with conditions set by user

Performance parameters

Model		8213
Quantity of channel		4
Parallel connection of channels		LED mode
Maximum input power of each channel		75W
Total maximum input power of whole module		300W
Input current/channel		0.01A-1A
Minimum operating voltageInput current		3V
Input voltage		3V-384V
CC (Constant current) load mode	Measurin range	0.01A-1A
	Resolution	0.5mA
	Precision	±(1%+0.1%FS)
CV (Constant current) load mode	Measurin range	3V-384V
	Resolution	60mV
	Precision	±(1%+0.1%FS)
