Shenzhen CPET Electronics Co., Ltd. eng39@szcpet.com 86-0755-23427658
Product Details
Place of Origin: China
Brand Name: CPET
Model Number: 8620
Payment & Shipping Terms
Minimum Order Quantity: 10sets
Price: 320dollars/set
Packaging Details: Wooden case packing
Delivery Time: 5-8 work days
Payment Terms: D/A, T/T
Supply Ability: 1000sets/month
Warranty: |
One Year |
Channel Number: |
12CH |
Input Current Range: |
0.2-5A |
Warranty: |
One Year |
Channel Number: |
12CH |
Input Current Range: |
0.2-5A |

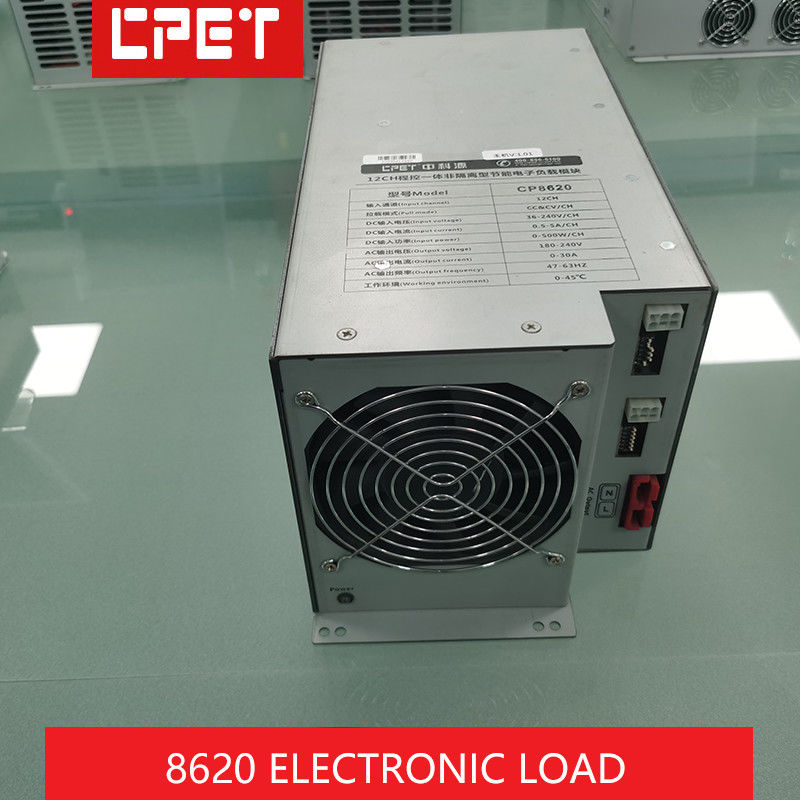

High Power High Power Electronic Load Instrument Equipment Factory Direct Sales
Scope of application
Outstanding functions
Performance parameters
| Model | CP8620 |
| Input voltage range | 35~240V |
| Input current range | 0.2~5A |
| Channel number | 12CH |
| Single channel power | 500W |
| Pull mode | CC,CV,LED,CR,CP |
| Votage comtrol precision | ±2%+0.5%FS |
| Voltage accuoacy | ±1%+0.5%FS |
| Current control accuracy | ±3%+0.5%FS |
| Current readback accuracy | ±1%+0.5%FS |
| Type of load | Single phase AC grid connection |
| Output voltage range | 180~240VAC |
| Output rated voltage | 220VAC 50Hz |
| Output grid-connected current | 33A Max |
| Tracking frequency range | 47~63Hz |
| Current harmonic (THD) | ≤3% |
| Dc injection component | ≤5mA |
| Communication mode | RS-485 |
