Product Details
Place of Origin: China
Brand Name: CPET
Model Number: 8601
Payment & Shipping Terms
Minimum Order Quantity: 5sets
Price: 900dollars/set
Packaging Details: Wooden case packing
Delivery Time: 10 work days
Payment Terms: D/A, T/T
Supply Ability: 500sets/month
Channel Number: |
4CH |
Single Channel Power: |
800W |
Input Voltage Range: |
3~60V |
Channel Number: |
4CH |
Single Channel Power: |
800W |
Input Voltage Range: |
3~60V |

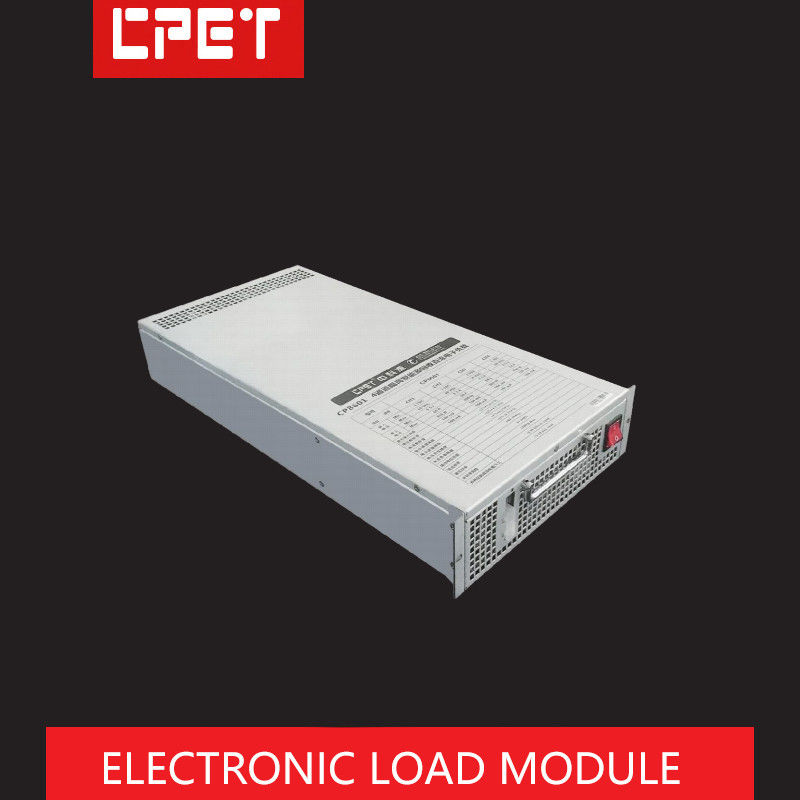

LED Switching Power Supply Aging Test Electronic Load Test Instrument
Scope of application
Outstanding functions
Performance parameters
| Model | CP8601 | CP8602 | CP8603 | CP8620 |
| Input voltage range | 3~60V | 10~120V | 3~70V | 35~240V |
| Input current range | 0.5~20Adc | 0.5~60A | 0.5~120A | 0.2~5A |
| Channel number | 4CH | 4CH | 4CH | 12CH |
| Single channel power | 800W | 800W | 1600W | 500W |
| Pull mode | CC,CV,LED,CR,CP | CC,CV,LED,CR,CP | CC,CV,LED,CR,CP | CC,CV,LED,CR,CP |
| Votage comtrol precision | ±2%+0.5%FS | ±1%+0.2%FS | ±2%+0.5%FS | ±2%+0.5%FS |
| Voltage accuoacy | ±1%+0.5%FS | ±1%+0.2%FS | ±1%+0.5%FS | ±1%+0.5%FS |
| Current control accuracy |
±2%+0.5%FS | ±1%+0.2%FS | ±5%+0.5%FS | ±3%+0.5%FS |
| Current readback accuracy |
±1%+0.5%FS | ±1%+0.2%FS | ±1%+0.5%FS | ±1%+0.5%FS |
| Type of load | Single phase AC grid connection | Single phase AC grid connection | Single phase AC grid connection | Single phase AC grid connection |
| Output voltage range | 180~240VAC | 180~240VAC | 180~240VAC | 180~240VAC |
| Output rated voltage | 220VAC 50Hz | 220VAC 50Hz | 220VAC 50Hz | 220VAC 50Hz |
| Output grid-connected current | 25A Max | 25A Max | 30A Max | 33A Max |
| Tracking frequency range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
| Current harmonic (THD) | ≤3% | ≤3% | ≤3% | ≤3% |
| Dc injection component | ≤5mA | ≤5mA | ≤5mA | ≤5mA |
| Communication mode | RS-485 | RS-485 | RS-485 | RS-485 |
