Product Details
Place of Origin: China
Brand Name: CPET
Model Number: 8401
Payment & Shipping Terms
Minimum Order Quantity: 5sets
Price: 900dollars/set
Packaging Details: Wooden case packing
Delivery Time: 10 work days
Payment Terms: D/A, T/T
Supply Ability: 400sets/month
Channel Number: |
4CH |
Single Channel Power: |
600W |
Input Voltage Range: |
85~260Vac |
Channel Number: |
4CH |
Single Channel Power: |
600W |
Input Voltage Range: |
85~260Vac |

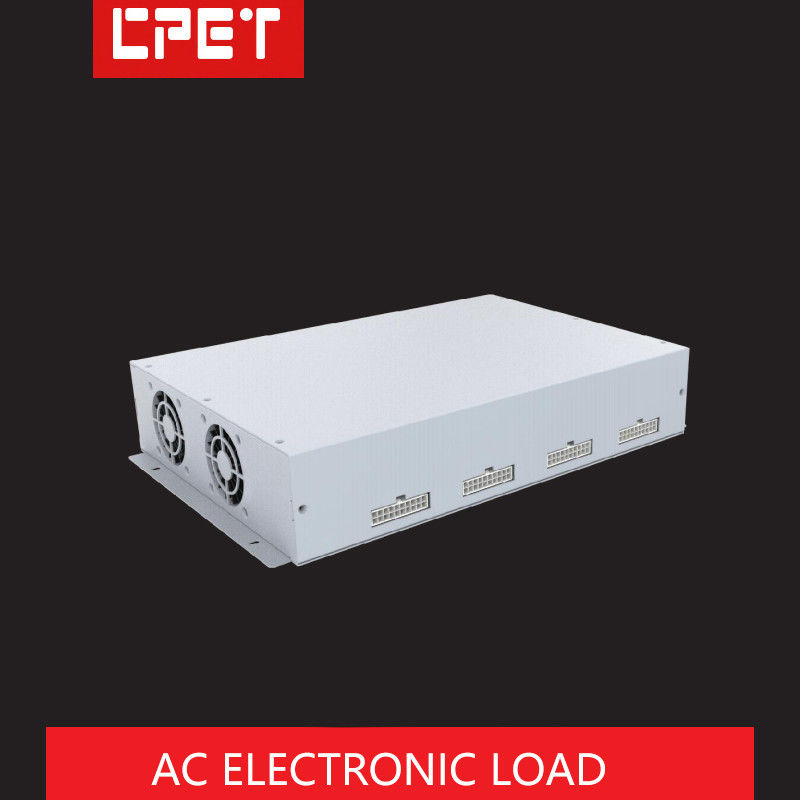

AC Vehicle Inverter Charge And Discharge Burn-In Test Electronic Load
Scope of application
Outstanding functions
Performance parameters
| Model | CP8401 | CP8402 | CP8403 | CP8404 |
| Input voltage range | 85~260Vac | 85~260Vac | 90~280Vac | 260~530Vac |
| Input current range | 0.5~6Adc | 0.5~10A | 0.5~32A | 0.5~32A |
| Channel number | 4CH | 4CH | 1CH | 1CH |
| Single channel power | 600W | 1600W | 7KW | 20KW |
| Votage comtrol precision | ±2%+0.5%FS | ±2%+0.5%FS | ±2%+0.5%FS | ±2%+0.5%FS |
| Voltage accuoacy | ±1%+0.5%FS | ±1%+0.5%FS | ±1%+0.5%FS | ±2%+0.5%FS |
| Current control accuracy |
±2%+0.5%FS | ±2%+0.5%FS | ±2%+0.5%FS | ±2%+0.5%FS |
| Current readback accuracy |
±1%+0.5%FS | ±1%+0.5%FS | ±1%+0.5%FS | ±1%+0.5%FS |
| Output voltage | 10~48Vdc | 400Vdc | 50~750V | 50~750V |
| Output current | 0~45Adc | 0~6Adc | 0~20A | 0~50A |
| Pull-load mode | CP,CC | CP,CC | CP,CC | CP,CC |
| Communication mode | RS-485 | RS-485 | RS-485 | RS-485 |
