Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CPET-AT3888S02
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 28000dollars/set
Packaging Details: Wooden case packing
Delivery Time: 48 work days
Payment Terms: L/C
Supply Ability: 1sets/month
Units Per Hour(UPH): |
1600PCS/H Or 56PCS/H |
Equipment Size: |
13000*2000*2700mm |
Equipment Weight: |
3000kg |
Units Per Hour(UPH): |
1600PCS/H Or 56PCS/H |
Equipment Size: |
13000*2000*2700mm |
Equipment Weight: |
3000kg |

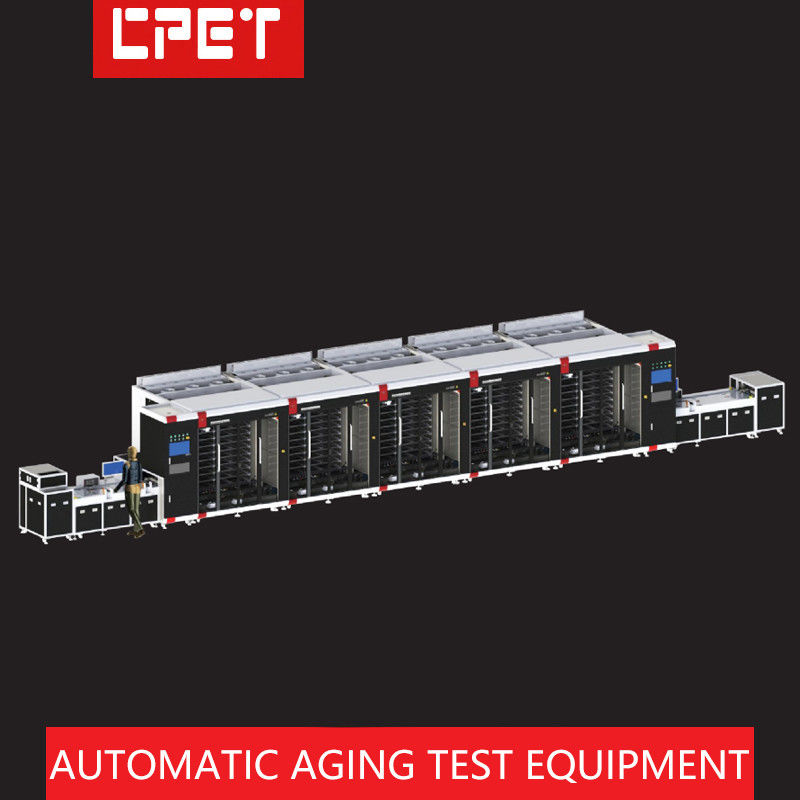

Automatic Aging Test Equipment For High power module LED power supply
Scope of application
Outstanding functions
| Basic information Model | Equipment Model | CPET-AT3888S |
| Units Per Hour(UPH) | 1600PCS/H or 56PCS/H | |
| Product Power | 5W~65W/CH or 1000W~3000W/CH | |
| Equipment Size | L=13000MM,W=2000MM,H=2700MM | |
| Equipment Weight | Around 3000kg | |
| Related Information of Burn-in line |
Burn-in Room Capacity | 3888PCS or 280PCS |
| Burn-in Time | 2H | |
| Burn-in Ply Number | 9 floors | |
| Transfer mode | Similar with the burn-in mode of tridimensional storage/manipulator transportation/connector contact | |
| Burn-in Line Temperature Control system |
Cooling Circulation Mode | Forced air cooling:fan+frequency convertwe+air duct |
| Control Scope and Precision |
The temperature control scope:adjustable from room temperature to 60°C.The control precision is ±5°C | |
| Temperature Rise Rate | Able to rise to more than 45°C in 20 minutes | |
| Burn-in Line Electronic Control system |
Product and Load Properties | Optional |
| Load Properties | Optional | |
| Burn-in Voltage Input | Support up to 6 voltages | |
| Protection and Alarm |
control power supply independently and added with protection and equpment including overheating and overload protection,earth leak
|
|
| Hardware Demand Description |
Independent computer host, display burn-instate, monitor output should be voltage, current,power and soon
|
|
| Software Monitor Demand |
Compile different Burn-in programs according to different products,realize voltage switching, impact, switching cycle, current setting, tem perature setting and other parameters
|
|
| Burn-in Management Demand |
The OK and NG judgment monitoring interface can directly understand that the data can be saved according to the required data format (TXT,
|
