Shenzhen CPET Electronics Co., Ltd. eng39@szcpet.com 86-0755-23427658
Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-LY01
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 7700dollars/set
Packaging Details: Wooden case packing
Delivery Time: 40 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Warranty Period: |
1year |
Weight: |
400kg |
Extemal Dimension: |
2050*1080*1900/custom Design |
Warranty Period: |
1year |
Weight: |
400kg |
Extemal Dimension: |
2050*1080*1900/custom Design |

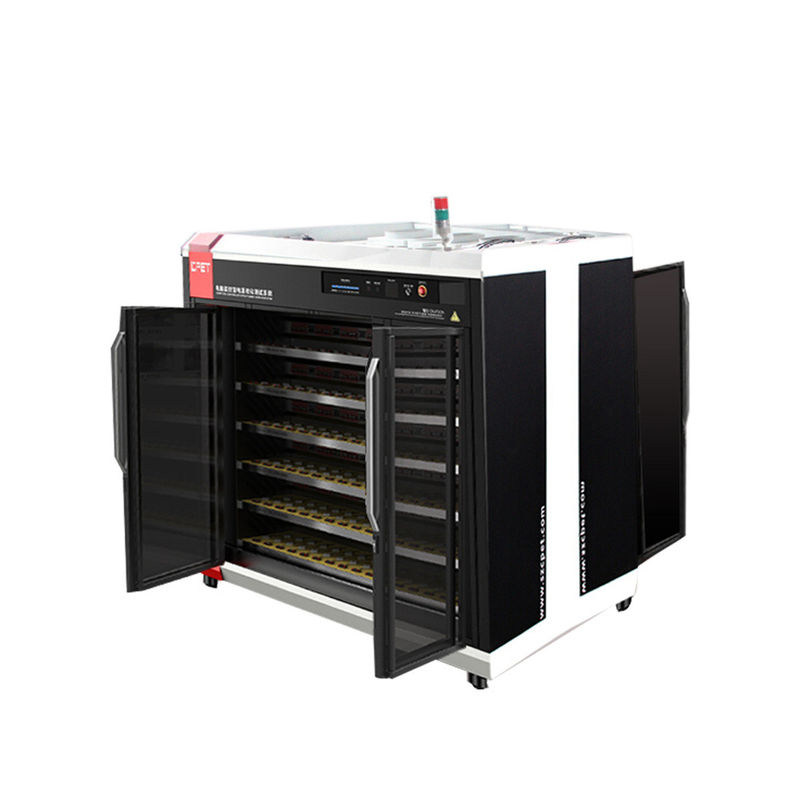

Bluetooth Headset Aging Cabinet Multi-Channel Power Aging Test Machine
| Model | CP-LY01 | CP-LY02 |
| Power of single channel | 30W/CH | 20W/CH |
| Quantity of load channels | 384CH | 480CH |
| Scope of load voltage | 10-120V | 10-120V |
| Scope of load current | 10-20A/CH | 0.5-10A/CH |
| Load precision | ±(2%+0.5%FS) | |
| Load Model | Energy saving load module | |
| Load Mode | CC+CV+CR Mode | |
| Number for plies of product zone | 6 | |
| Height for plies of product zone(mm) | 170 | |
| Width of products zone(mm) | 340 | |
| Temperature control of products zone | Temperature control tyep of products zone: normal temperature-60°C | |
| Structure material of trolley | Elaborately processed and produced with cold-rolled sheet | |
| Mode of main control | Monitoring software for burn-in of computermonitoring type power | |
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | |
| Interface mode of UUT | Connecting fixture boards(with various specifications)for first choice/custom design | |
| External dimension | 2050*1080*1900/custom design | |
