Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-SX02
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8500dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Reference Size (D*W*H): |
2050*880*1900mm |
Number Of Car Layers:: |
6 |
Height Of Truck:: |
1.7m |
Reference Size (D*W*H): |
2050*880*1900mm |
Number Of Car Layers:: |
6 |
Height Of Truck:: |
1.7m |

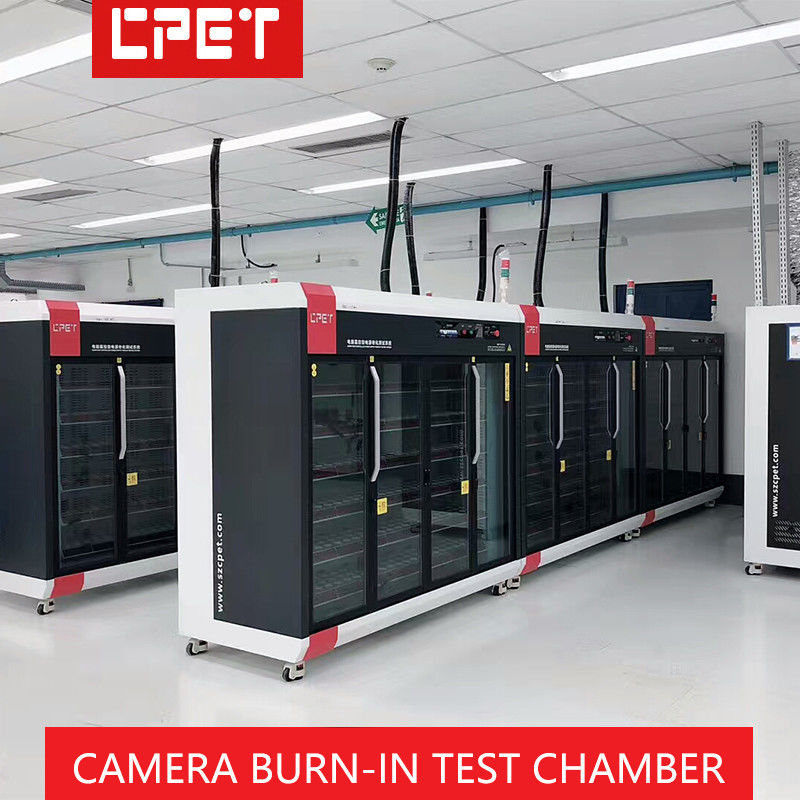

Webcam Aging Rack Remote Computer Monitoring Camera Burn-In Test Equipment
| 1 | Introduction to the appearance structure of the aging trolley: | |
| A | Car size (mm) : | L2050mm*W880mm*H1900mm double-sided door |
| B | Product area clearance size: | L1650*W600mm |
| C | Number of car layers: | 6 |
| D | Height of truck: | 170mm |
| E | Load area heat dissipation mode: | Top turbine exhaust fan up-row |
| F | Interlayer insulation and anti-static mode: | Epoxy insulating board with heat dissipation holes on the surface |
| G | Truck structure form: | Product area adopts front and rear double doors, easy to load and unload products on both sides |
| 2 | Description of power module configuration, measured power, and aging quantity: | |
| A | Dc power supply configuration: | A 12V/29A DC power supply is configured for each layer to supply DC power below 12V/1.0A for each product bit |
| B | Number of aging products in the whole container: | 120 sets of products below 12V/1A |
| C | Connection mode: | The DC input terminal is configured with a DC bus (5521), reserved network ports in each bit, switches in each layer, and a master switch on top. The switch is installed at the top |
| D | Product area temperature control accuracy: | Normal temperature+10℃～55℃(±5℃) |
| E | Product area temperature control principle: | Low temperature heating, over temperature exhaust |
