Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-301302
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 7900dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Scope Of Load Current: |
0.05-6A/CH |
Load Mode: |
CC+CV Mode |
Customizable Fast Charge Function: |
QC, PO, FCP, SCP, PPS, Etc. |
Scope Of Load Current: |
0.05-6A/CH |
Load Mode: |
CC+CV Mode |
Customizable Fast Charge Function: |
QC, PO, FCP, SCP, PPS, Etc. |

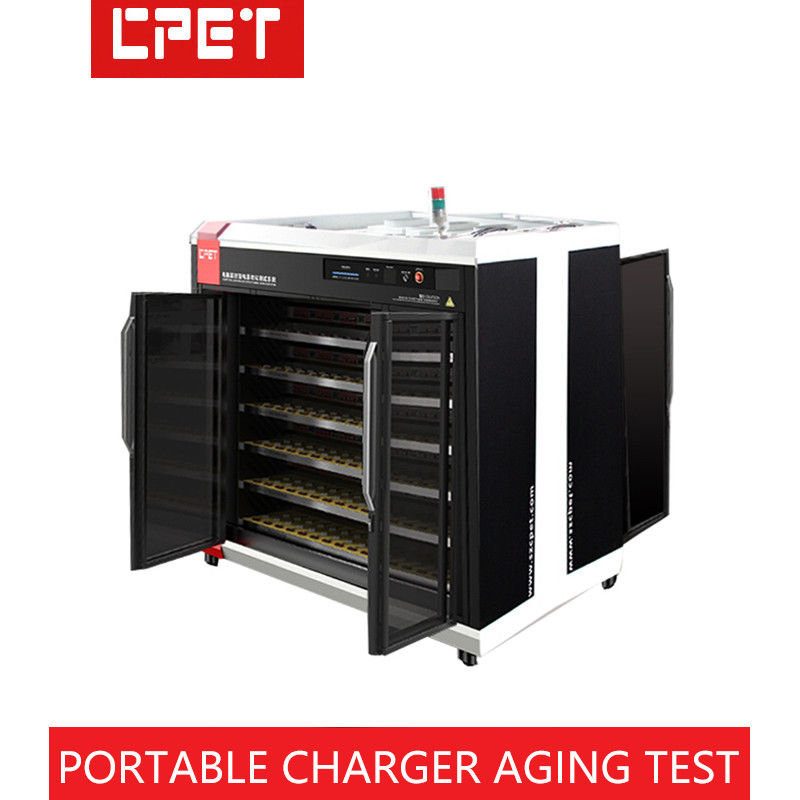

Portable Charger Wireless Charging USB Burn-In Chamber Manufacturer
| Model | CP-301102 | CP-301202 | CP-301302 |
| Power of single channel | 65W/CH | 65W/CH | 65W/CH |
| Quantity of load channels | 192CH | 240CH | 384CH |
| Scope of load voltage | 2-100V | 2-100V | 2-100V |
| Scope of load current | 0.05-5A/CH | 0.05-5A/CH | 0.05-6A/CH |
| Load precision | ±(1%+0.1%FS) | ±(1%+0.1%FS) | ±(1%+0.1%FS) |
| Charge and discharge mode | NO | NO | NO |
| Load Mode | CC+CV Mode | CC+CV Mode | CC+CV Mode |
| Number for plies of product zone | Single side | Single side | Single side |
| Height for plies of product zone(mm) | 170 | ||
| Width of products zone(mm) | Series CC mode 340 | ||
| Temperature control of products zone | Temperature control type of products zone: normal temperature-60℃ | ||
| Structure material of trolley | Elaborately processed and produced with cold-rolled sheet | ||
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power | ||
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | ||
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design | ||
| Customizable fast charge function | QC, PO, FCP, SCP, PPS, etc. | ||
| External dimension | 2050*880*1900/custom design | ||
