Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-301403
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 7900dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Quantity Of Load Channels: |
240CH |
Guarantee Period: |
12 Months |
Power Of Single Channel: |
100W/CH |
Quantity Of Load Channels: |
240CH |
Guarantee Period: |
12 Months |
Power Of Single Channel: |
100W/CH |

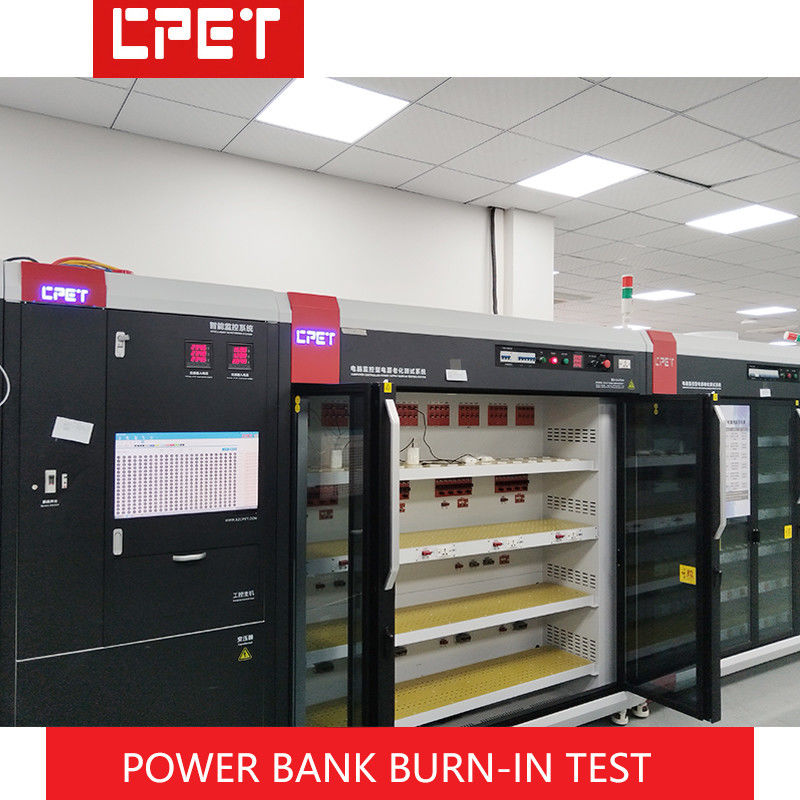

ODM Customization Mobile Phone Battery Pack Burn-In Test Equipment
| Model | CP-3014 |
| Power of single channel | 100W/CH |
| Quantity of load channels | 240CH |
| Scope of load voltage | 3-20V |
| Scope of load current | 0.05-5A/CH |
| Load precision | ±(1%+0.1%FS) |
| Charge and discharge mode | CC+CV Mode |
| Load Mode | CC+CV Mode |
| Number for plies of product zone | Single side |
| Height for plies of product zone(mm) | 170 |
| Width of products zone(mm) | Series CC mode 340 |
| Temperature control of products zone | Temperature control type of products zone: normal temperature-60℃ |
| Structure material of trolley | Elaborately processed and produced with cold-rolled sheet |
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power |
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design |
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design |
| Customizable fast charge function | QC, PO, FCP, SCP, PPS, etc. |
