Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-3036
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8800dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: D/A
Supply Ability: 30sets/month
Power Of Single Channel: |
6400W/CH |
Scope Of Load Voltage: |
3-60V |
Warranty Period: |
1year Free Warranty |
Power Of Single Channel: |
6400W/CH |
Scope Of Load Voltage: |
3-60V |
Warranty Period: |
1year Free Warranty |

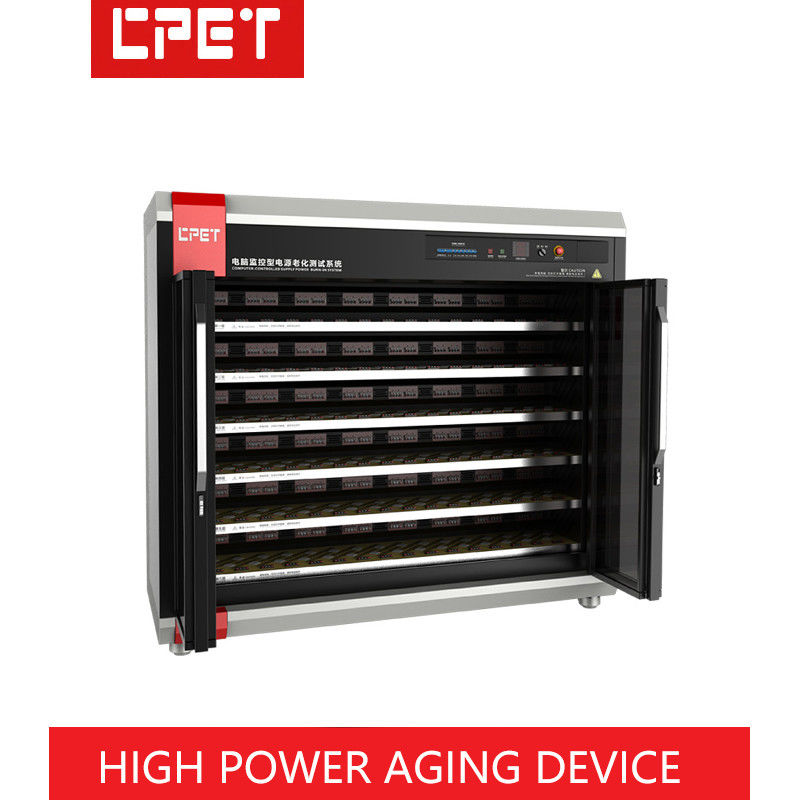

Energy-Saving High-Power DC Power Supply LED Power Supply Aging Device
Scope of application
Suitable for aging of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, SSN, NPS power supplies, etc.
Outstanding functions
Performance parameters
| Model | CP-3033 | CP-3034 | CP-3036 |
| Power of single channel | 400W/CH | 1600W/CH | 2000W/CH |
| Quantity of load channels | 96CH | 36CH | 12CH |
| Scope of load voltage | 3-60V | 3-60V | 3-600V |
| Scope of load current | 0.5-40A/CH | 0.5-120A/CH | 480A/CH |
| Load precision | ±(2%+0.5%FS) | ||
| Load Model | Energy saving load module | ||
| Load Mode | CC+CV+CR Mode | ||
| Number for plies of product zone | 6 | ||
| Height for plies of product zone(mm) | 170 | ||
| Width of products zone(mm) | 340 | ||
| Temperature control of products zone | Temperature control tyep of products zone: normal temperature-60°C | ||
| Structure material of trolley | Elaborately processed and produced with cold-rolled sheet | ||
| Mode of main control | Monitoring software for burn-in of computermonitoring type power | ||
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | ||
| Interface mode of UUT | Connecting fixture boards(with various specifications)for first choice/custom design | ||
| External dimension | 2050*1000*1900/custom design | ||
