Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-CDQ03
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: 8600dollars/set
Packaging Details: Wooden case packing
Delivery Time: 30 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Warranty Period: |
One Year Free Warranty |
Trolley Size (mm): |
L2100*W1500*H1800mm (size Of A Single Burn-in Cabinet) |
Trolley Height: |
450mm |
Warranty Period: |
One Year Free Warranty |
Trolley Size (mm): |
L2100*W1500*H1800mm (size Of A Single Burn-in Cabinet) |
Trolley Height: |
450mm |

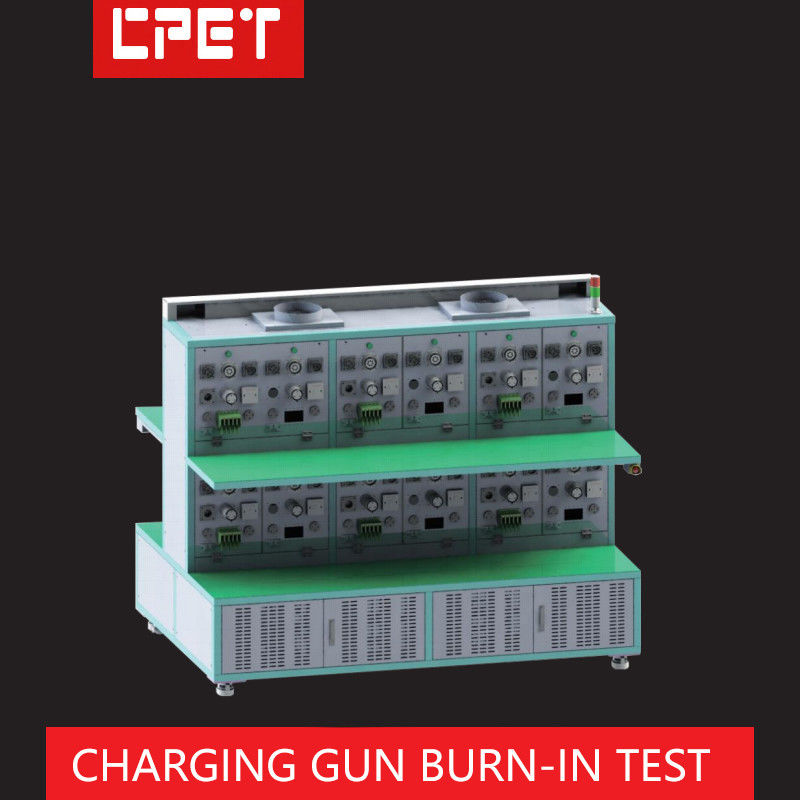

AC Ev Charging Gun Series Energy-Saving Burn-In Cabinet Chinese Factory
Architecture diagram
| Burn-in cabinet structure and Burn-in quantity planning |
Trolley size (mm) | L2100*W1500*H1800mm (size of a single Burn-in cabinet) |
| Number of trolley layers | 2 layers, product area depth 450mm (6 Burn-in positions per layer) | |
| Trolley height | 450mm | |
| Trolley structure material | cold rolled sheet | |
| Load area heat dissipation mode | Top turbine exhaust fan top row type (easy to control the ambient temperature) | |
| Layer insulation and anti-static method | Epoxy insulation board with heat dissipation holes on the surface | |
| Overall burn-in room structure | Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine | |
| Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quantity |
Energy recovery module control mode | RS485 communication mode, upper computer uses RS232 communication mode |
| Product burn-in mode | The burn-in process of the product is carried out by the way of relative drag | |
| Install the number of energy-saving load modules | 4 | |
| Load isolation mode | Isolated load | |
| Energy recovery module design architecture | No relay, long life design scheme (independent intellectual property rights) | |
| Number of burn-in products in the entire cabinet | A single cabinet burn-in below 22KW charging pile 24, compatible with low power | |
| Connection mode | National standard, European regulation, American regulation, Tesla |
