Shenzhen CPET Electronics Co., Ltd. eng39@szcpet.com 86-0755-23427658
Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-KZQ01
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8700dollars/set
Packaging Details: Wooden case packing
Delivery Time: 30 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Trolley Size (mm): |
L2050*W1250*H2050mm (size Of A Single Burn-in Cabinet) |
Trolley Height: |
280mm |
Install The Skill Module Model: |
CP8601, 24PCS In One Cabinet |
Trolley Size (mm): |
L2050*W1250*H2050mm (size Of A Single Burn-in Cabinet) |
Trolley Height: |
280mm |
Install The Skill Module Model: |
CP8601, 24PCS In One Cabinet |

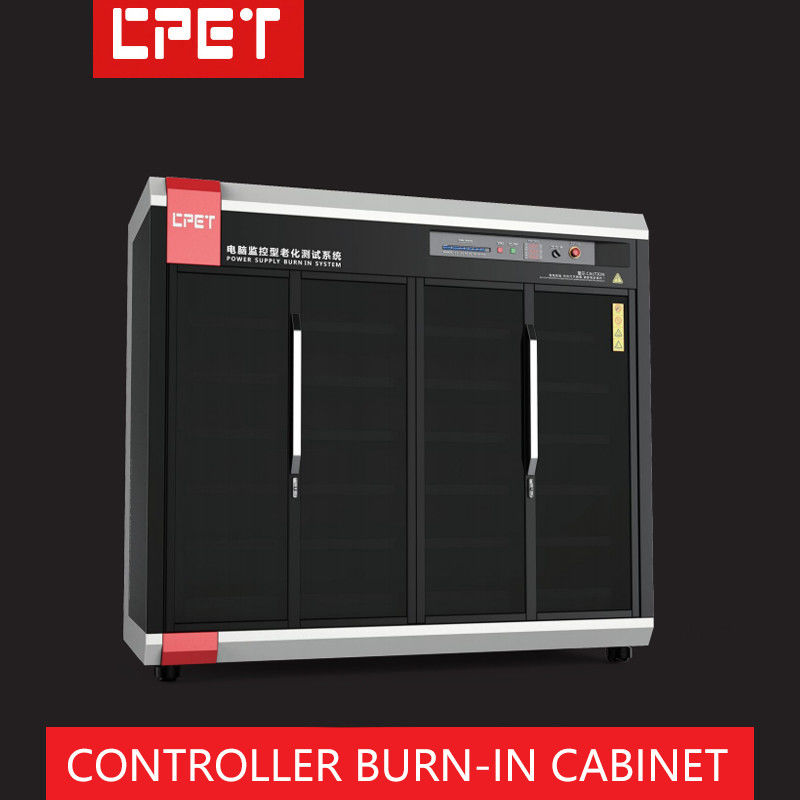

Solar Power Maximum Power Point Tracking Controller Burn-In Cabinet
| Burn-in cabinet structure and Burn-in quantity planning |
Trolley size (mm) | L2050*W1250*H2050mm (size of a single Burn-in cabinet) |
| Number of trolley layers | 4 layers, product area depth 400mm, (6 Burn-in positions per layer) | |
| Trolley height | 280mm | |
| Trolley structure material | cold rolled sheet | |
| Load area cooling method | Top turbine exhaust fan top row type (easy to control the ambient temperature) | |
| Layer insulation and anti-static method | Epoxy insulation board with heat dissipation holes on the surface | |
| Overall burn-in room structure | Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine | |
| Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quant |
Energy recovery module control method | RS485 communication mode, upper computer uses RS232 communication mode |
| Energy recovery module isolation mode | Electronic load module channel adopts photoelectric isolation (communication and power supply isolation) | |
| Install the skill module model | CP8601, 24PCS in one cabinet | |
| Number of installed DC source modules | Each burn-in cabinet is configured with six 10-120V /200A /20KW DC power modules | |
| Energy recovery module carrying capacity | Load capacity: 2.5-60Vdc/0.5-240A/3.2kW (voltage, current adjustable | |
| rgy recovery module design architecture |
No relay, long life design scheme (independent intellectual property rights) | |
| Number of burn-in products in the entire cabinet |
One cabinet burn-in MTTP modules of less than 3.2KW 24PCS |
