Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-MCU06
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: 20000dollars/set
Packaging Details: Wooden case packing
Delivery Time: 30 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Burn-in Bits/layer: |
4 Bits/layer |
Burn-in Product Input Current: |
50A/bit |
Warranty Period: |
1 Year |
Burn-in Bits/layer: |
4 Bits/layer |
Burn-in Product Input Current: |
50A/bit |
Warranty Period: |
1 Year |

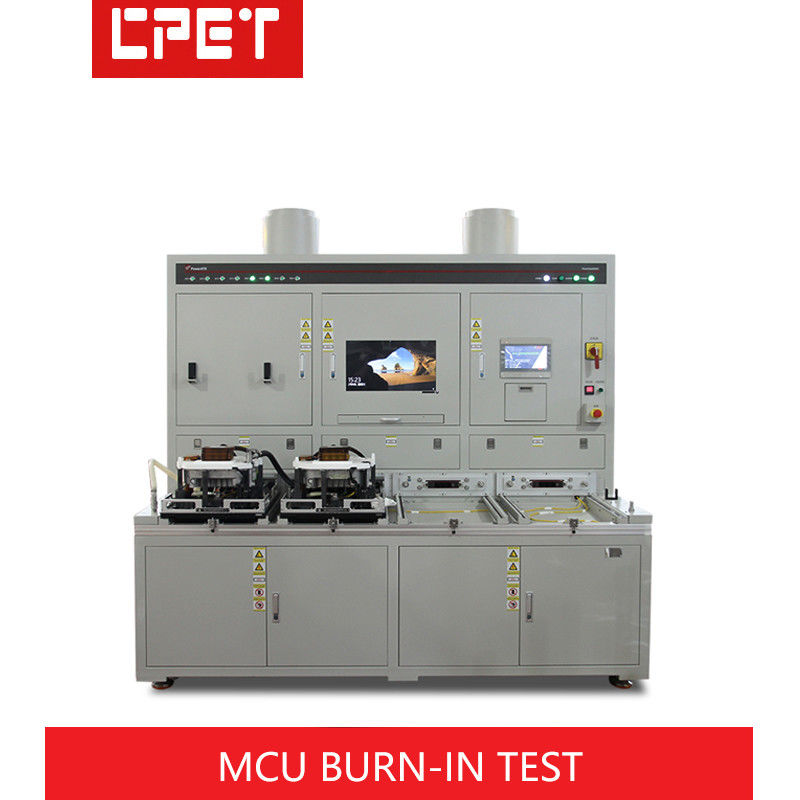

Burn-In Test Equipment Of Automotive Control Chip Microcontroller Unit Module
| System | System structure | 1 control cabinet + 2 aging cabinets + 1 water temperature cabinet |
| Overall size | 6900*1600*2050mm | |
| Total floor area | 6900*2500mm(Including operation area) | |
| Total input voltage | Three-phase five-wire system 220Vac (rated) | |
| Total input current | 250A | |
| Total input power | 150kW | |
| Application ambient temperature | 0-40℃ | |
| Application environment humidity | 0-95% | |
| Safety requirements | Comply with IEC62368 international standard design requirements | |
| Burn-in cabinet | Burn-in bits/cabinet | 16 bits/cabinet |
| Burn-in bits/layer | 4 bits/layer | |
| Burn-in product power | 20kW/bit | |
| Burn-in product input voltage | 150-1000Vdc | |
| Burn-in product input current | 50A/bit | |
| Burn-in Product Load Category | Inductive/Motor/AC Feedback Load | |
| Burn-in product load current | 350A (inductor/motor)/40A (AC feedback load) | |
| Power Connector Type | SB50 (HV+/HV-) | |
| Load Connector Type | SB350 (U/V/W/PE) | |
| Signal Connector Type | 24Pin 5566 | |
| Input power | 320kW | |
| Feedback power | 256kW | |
| Constant temperature range | Room temperature+5°C-60°C | |
| Constant temperature accuracy | ±5°C | |
| Number of temperature control points | 5 | |
| Open type | Sliding door/folding door/side door | |
| Volume size | 2100*1600*2050mm | |
| Dimensions in the product area | 1700*550*1500mm | |
| Product area layers | 4 | |
| Top floor height | 1450mm | |
| Product area air duct direction | Left and right ventilation | |
| Cooling method | Air cooling | |
| Material | 1.5mm cold rolled sheet | |
| Water temperature cabinet |
Water temperature range | Room temperature+5°C-60°C |
| Water temperature accuracy | ±5°C | |
| Water temperature | 8 | |
| Number of serial products/way | 4/way | |
| Dissipated power/circuit | 4kW/way | |
| Channel diameter | 3/4 inch | |
| Volume size | 880*1000*1900mm | |
| Monitoring software |
Display running information |
Input voltage, current, power, output voltage
|
| Show status information |
Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current / No Output / Protection
|
|
| Display accuracy | ±(1%+0.2%FS) | |
| Control precision | ±(1%+0.2%FS) | |
| Bad way of reporting | Audible alarm | |
| Scan speed | 5S | |
| Control cabinet | Control system | Window 10 |
| Display medium | Computers and Monitors | |
| Manipulating medium | Mouse and keyboard | |
| Communication method | Cable | |
| Type of protection |
Over current, leakage, over temperature, smoke, emergency stop
|
|
| Alarm method | Sound and light alarm, remote network | |
| Heat dissipation type | Air cooling | |
| Maintenance mode | Post maintenance | |
| Material | 1.5mm cold rolled sheet | |
| Volume size | 880*860*1900mm |
