Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-NBQ841
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 9300dollars/set
Packaging Details: Wooden case packing
Delivery Time: 40 work days
Payment Terms: L/C
Supply Ability: 25sets/month
Total Input Current: |
300A |
Total Input Voltage: |
Three-phase Five-wire System 220Vac (rated) |
Warranty Period: |
1 Year |
Total Input Current: |
300A |
Total Input Voltage: |
Three-phase Five-wire System 220Vac (rated) |
Warranty Period: |
1 Year |

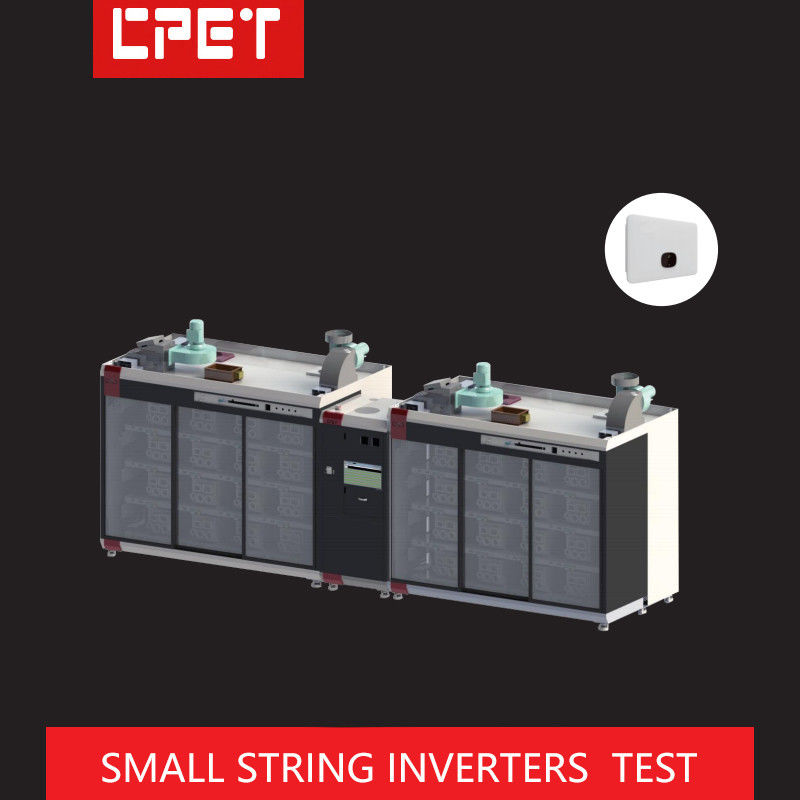

| System | System structure | 1 control cabinet + 2 burn-in cabinets |
| Overall size | 5100*1500*2050mm | |
| Total floor area | 5100*2500mm(Including operation area) | |
| Total input voltage | Three-phase five-wire system 220Vac (rated) | |
| Total input current | 300A | |
| Total input power | 160kW | |
| Application ambient temperature | 0-40℃ | |
| Application environment humidity | 0-95% | |
| Fire protection requirements | Materials meet UL 94V0 rating | |
| Environmental requirements |
Materials comply with Rohs, WEEE requirements
|
|
| Safety requirements |
Comply with IEC62368 international standard design requirements
|
|
| Burn-in cabinet | Burn-in bits/cabinet | 9 bits/cabinet |
| Burn-in bits/layer | 3 bits/layer | |
| Burn-in product power | 40kW/bit | |
| Burn-in product input voltage | 200-1000Vdc/bit | |
| Burn-in product input current | 100A/bit | |
| Burn-in Product Load Category | 35kW/bit | |
| Burn-in product output voltage | Three-phase five-wire | |
| Burn-in product output current | 80A/bit | |
| AC Connector Type | PA120 (L1/ L2/ L3/N/PE) | |
| DC Connector Type | MC4 photovoltaic connector (PV+/PV-/4 groups) | |
| Signal Connector Type | RJ45 (network port) | |
| Bit Status Indicator | No | |
| Input power | 380kW | |
| Feedback power | 315kW | |
| Constant temperature range | Room temperature+5°C-60°C | |
| Constant temperature accuracy | ±5°C | |
| Number of temperature control points | 5 | |
| Open type | Sliding door/folding door/side door | |
| Volume size | 2100*1500*2050mm | |
| Dimensions in the product area | 1700*600*1500mm | |
| Product area layers | 3 | |
| Bit space size | 560*550*480mm | |
| Minimum floor height | 300mm | |
| Top floor height | 1320mm | |
| Product area air duct direction | Left and right ventilation | |
| Cooling method | Air cooling | |
| Material | 1.5mm cold rolled sheet | |
| Monitoring software |
Display running information |
Input voltage, current, power, output voltage
|
| Show status information |
Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current / No Output / Protection
|
|
| Display accuracy | ±(1%+0.2%FS) | |
| Control precision | ±(1%+0.2%FS) | |
| Bad way of reporting | Audible alarm | |
| Report format | CSV format | |
| Statistics | Yield/CPK/Time Distribution | |
| MES docking | Support | |
| Scan speed | 5S |
