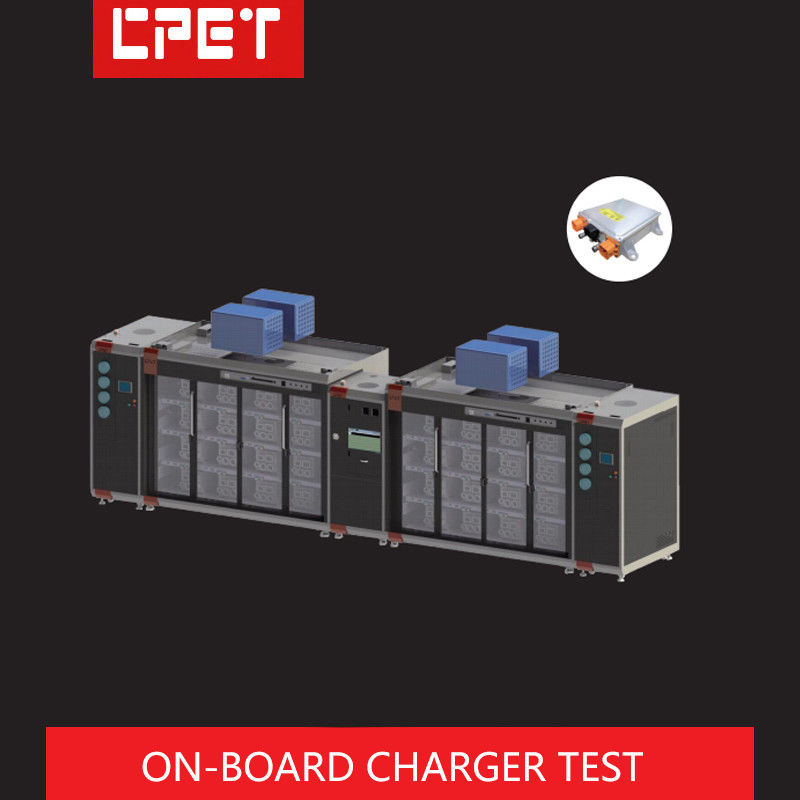

Burn-In Test Facility Of EV Integrated On-Board Charger Support Customization
| System | System structure | 1 control cabinet + 2 aging cabinets + 1 water temperature cabinet |
| Overall size | 6900*1600*2050mm | |
| Total floor area | 6900*2500mm(Including operation area) | |
| Total input voltage | Three-phase five-wire system 220Vac (rated) | |
| Total input current | 100A | |
| Total input power | 35kW | |
| Application ambient temperature | 0-40℃ | |
| Application environment humidity | 0-95% | |
| Fire protection requirements | Materials meet UL 94V0 rating | |
| Environmental requirements | Materials comply with Rohs, WEEE requirements | |
| Safety requirements | Comply with IEC62368 international standard design requirements | |
| Burn-in cabinet | Burn-in bits/cabinet | 16 bits/cabinet |
| Burn-in bits/layer | 4 bits/layer | |
| Burn-in product power | 7.5kW/bit | |
| Burn-in product input voltage | 50-800Vdc | |
| Burn-in product input current | 25A/bit | |
| Low-voltage power of Burn-in products | 3.2kW/bit | |
| Low voltage voltage of Burn-in products | 8-30V | |
| Burn-in product battery current | 240A/bit | |
| Burn-in product AC power | 7kW/bit | |
| Burn-in products AC voltage | 220/380Vac/50Hz three-phase five-wire | |
| Burn-in product AC current | 32A/bit | |
| AC Connector Type | PA45 (L1 / L2/ L3/N/PE) | |
| Power Connector Type | SB50 (HV+/HV-) | |
| Low Voltage Connector Type | SB350 (LV+/LV-) | |
| Signal Connector Type | 24Pin 5566 | |
| Input power | 130kW | |
| Feedback power | 100kW | |
| Constant temperature range | Room temperature+5°C-60°C | |
| Constant temperature accuracy | ±5°C | |
| Number of temperature control points | 5 | |
| Open type | Sliding door/folding door/side door | |
| Volume size | 2100*1600*2050mm | |
| Dimensions in the product area | 1700*550*1500mm | |
| Product area layers | 4 | |
| Bit space size | 425*550*350mm | |
| Minimum floor height | 300mm | |
| Top floor height | 1450mm | |
| Product area air duct direction | Left and right ventilation | |
| Cooling method | Air cooling | |
| Material | 1.5mm cold rolled sheet, epoxy sheet (laminate) | |
| Water temperature cabinet |
Water temperature range | Room temperature+5°C-60°C |
| Water temperature accuracy | ±5°C | |
| Water temperature | 8 | |
| Number of serial products/way | 4/way | |
| Dissipated power/circuit | 4kW/way | |
| Cooling method | Chilled water or air cooling | |
| Water pressure range | 0.05-0.2MPa | |
| Flow range | 3-15L/min | |
| Channel diameter | 3/4 inch | |
| Volume size | 880*1000*1900mm | |
| Monitoring software |
Display running information |
Input voltage, current, power, output voltage(DC source module communication or product communication)
|
| Show status information |
Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current /No Output / Protection
|
|
| Display accuracy | ±(1%+0.2%FS) | |
| Control precision | ±(1%+0.2%FS) | |
| Bad way of reporting | Audible alarm | |
| Report format | CSV format | |
| Statistics | Yield/CPK/Time Distribution | |
| MES docking | Support | |
| Scan speed | 5S |
