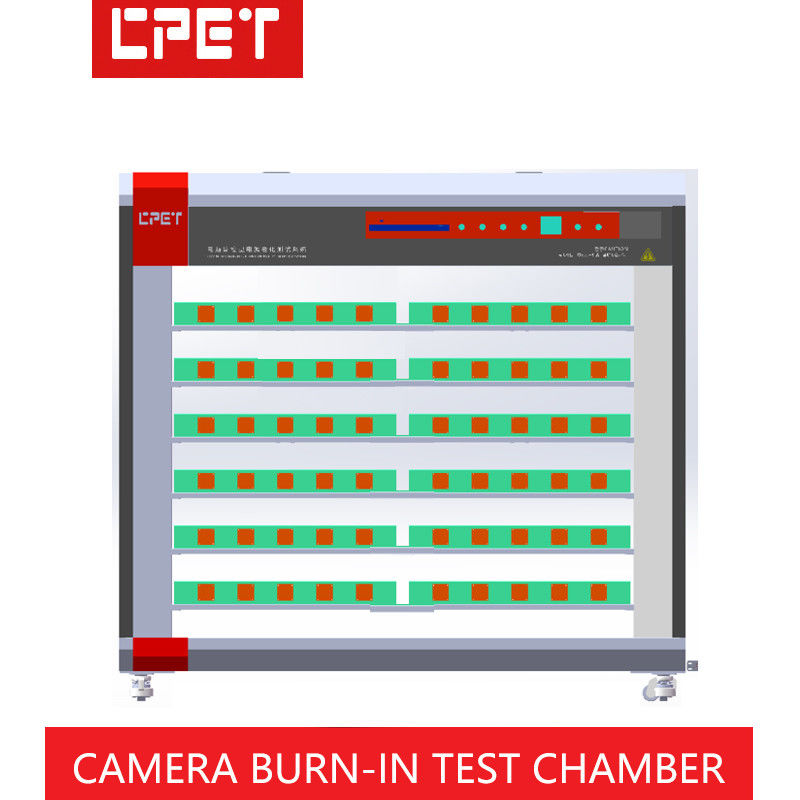

Mini Motion Pickup Camera Computer Monitors Burn In Test Equipment

Name: Mini Motion Pickup Camera Computer Monitors Burn In Test Equipment
Brand: Shenzhen CPET Electronics Co., Ltd.
SKU: CP-SX01
Price: 8500 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CPET

Model Number: CP-SX01

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: 8500dollars/set

Packaging Details: Wooden case packing

Delivery Time: 35 work days

Payment Terms: L/C

Supply Ability: 30sets/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                170mm burn in chamber, Camera burn in chamber, Camera burn in test equipment


Reference Size (DWH):	L2050W880H1900mm	Product Area Clearance Size::	L1650*W600mm
Height Of Truck::	170mm

Reference Size (DWH):	L2050W880H1900mm
Product Area Clearance Size::	L1650*W600mm
Height Of Truck::	170mm

Product Description

Mini Motion Pickup Camera Computer Monitors The Burn-In Test Equipment

Performance parameters

1	Introduction to the appearance structure of the aging trolley:
A	Car size (mm) :	L2050mmW880mmH1900mm double-sided door (can be customized according to customer requirements, subject to actual production)
B	Product area clearance size:	L1650*W600mm
C	Number of car layers:	6
D	Height of truck:	170mm
E	Car structure material/appearance	1.5mm thick main body cold rolled plate, new industrial design appearance, aging cabinet in the middle of the partition to facilitate the aging cabinet partition temperature control
F	Load area heat dissipation mode:	Top turbine exhaust fan up-row (easy ring temperature control)
G	Interlayer insulation and anti-static mode:	Epoxy insulating board with heat dissipation holes on the surface
H	Truck structure form:	Product area adopts front and rear double doors, easy to load and unload products on both sides
I	Aluminum alloy visible folding door structure:	The product is closed, visual folding glass door, and the glass door is affixed with high temperature resistant dark glass film, which is easy to test the product infrared lamp
2	Description of power module configuration, measured power, and aging quantity:
A	Dc power supply configuration:	A 12V/29A DC power supply is configured for each layer to supply DC power below 12V/1.0A for each product bit
B	Number of aging products in the whole container:	120 sets of products below 12V/1A
C	Connection mode:	The DC input terminal is configured with a DC bus (5521), reserved network ports in each bit, switches in each layer, and a master switch on top. The switch is installed at the top
D	Product area temperature control accuracy:	Normal temperature+10℃～55℃(±5℃)
E	Product area temperature control principle:	Low temperature heating, over temperature exhaust
F	Trolley power distribution and control mode:	380V three-phase five-wire distribution; Computer monitoring and manual electrical control
G	Safety protection:	Equipment grounding protection, leakage switch protection, smoke alarm automatic power off protection, etc
