Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-3019
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 7500dollars/set
Packaging Details: Wooden case packing
Delivery Time: 30 work days
Supply Ability: 30sets/month
Power Of Single Channel: |
100W/CH |
Load Channels: |
60-120CH |
Scope Of Load Voltage: |
2-450V |
Scope Of Load Current: |
0.5-10A/CH |
Load Mode: |
CC+CV+CR+CP+LED Mode |
External Dimension (L*W*H): |
2050*880*1900/custom Design |
Power Of Single Channel: |
100W/CH |
Load Channels: |
60-120CH |
Scope Of Load Voltage: |
2-450V |
Scope Of Load Current: |
0.5-10A/CH |
Load Mode: |
CC+CV+CR+CP+LED Mode |
External Dimension (L*W*H): |
2050*880*1900/custom Design |

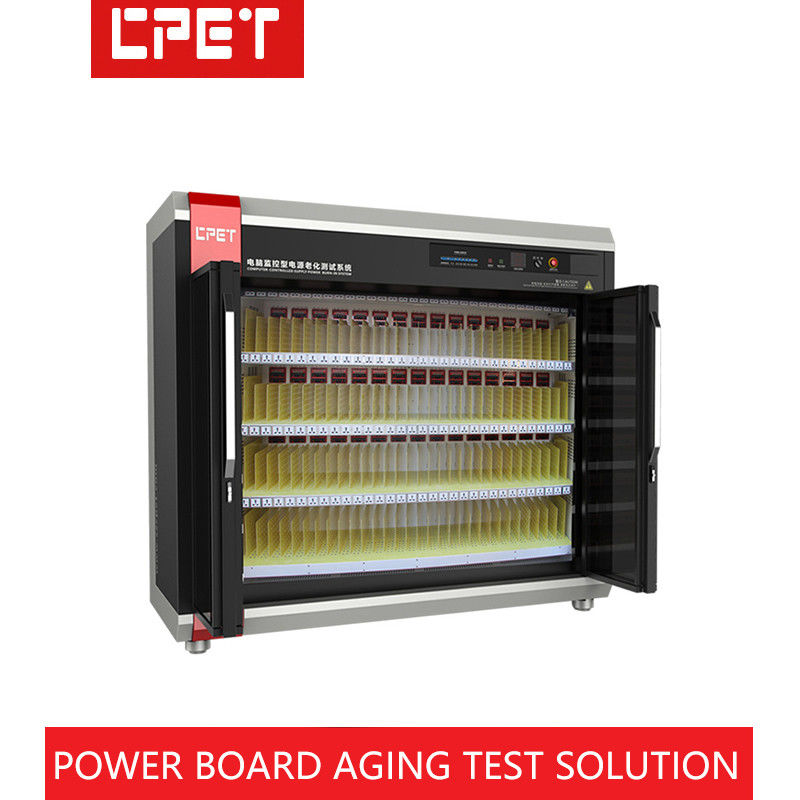

TV Power Supply Aging Test Chamber For TV Motherboard Aging Cabinet
Application Scope
Suitable for the burn-in testing of TV Board/Display power supply
excellent function
| Model | CP-3018 | CP-3019 |
| Power of single channel | 125W/CH 150W/CH 200W/CH | 100W/CH |
| Quantity of load channels | 60-120CH | 60-120CH |
| Scope of load voltage | 2-450V | 2-450V |
| Scope of load current | 0.5-10A/CH | 0.5-10A/CH |
| Load precision | ±(1%+0.1%FS) | |
| Load Model | Energy Saving | Energy consumption |
| Load Mode | CC+CV+CR+CP+LED Mode | |
| Number for plies of product zone | 4 | |
| Height for plies of product zone(mm) | 260 | |
| Width of products zone(mm) | 300 | |
| Temperature control of products zone |
Temperature control type of products zone: normal temperature-60℃ | |
| Structure material of trolley | Elaborately processed and produced with cold-rolled sheet | |
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power | |
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | |
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design | |
| External dimension (L*W*H) | 2050*880*1900/custom design | |
