Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-POC01
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 7500dollars/set
Packaging Details: Wooden case packing
Delivery Time: 40 work days
Supply Ability: 30sets/month
Trolley Size: |
L2050*W880*H2050mm |
Electronic Load: |
CP8104 |
Number Of Car Layers: |
4 |
Trolley Size: |
L2050*W880*H2050mm |
Electronic Load: |
CP8104 |
Number Of Car Layers: |
4 |

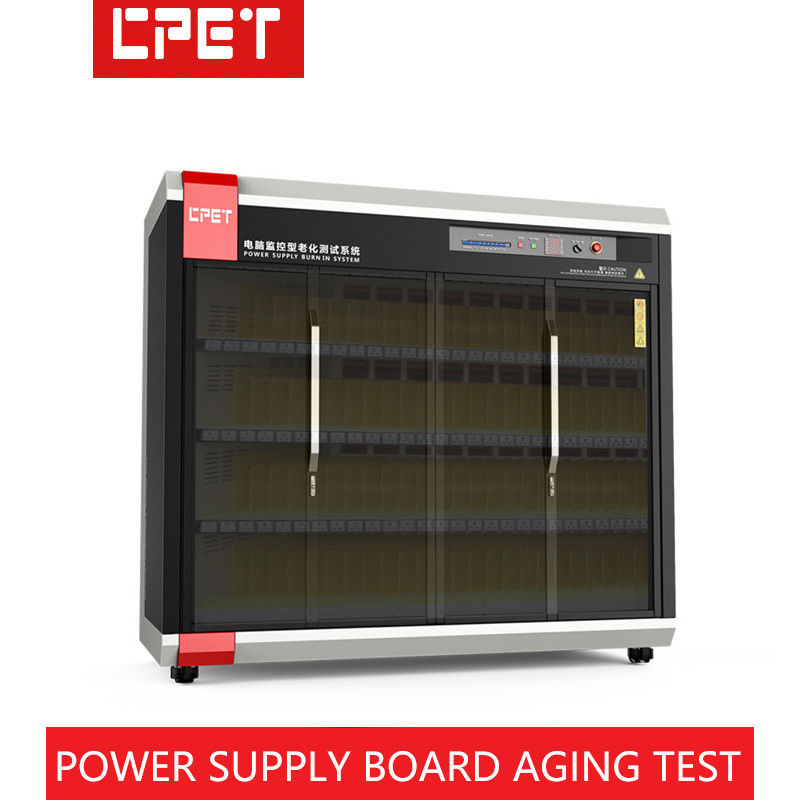

Poc Power Supply Board Constant Temperature And Pressure Aging Cabinet
Outstanding functions
| 1 | Introduction to the appearance and structure of the power aging trolley: | |
| A | Car size (mm) : | L2050*W880*H2050mm |
| B | Number of car layers: | 4 |
| C | Height of truck: | 320mm |
| D | Truck structure material: | Cold-rolled sheet |
| E | Load area heat dissipation mode: | Top turbine exhaust fan up-row (easy ring temperature control) |
| F | Interlayer insulation and anti-static mode: | The width of the laminate is 340mm, the epoxy insulation board with heat dissipation holes on the surface is installed on the laminate, the height of the diaphragm is 250mm, the spacing between the two diaphragms is about 70mm, and the width of the product area is 400mm |
| G | Truck structure form: | The product area is isolated from the load area, and the top of the cabinet is provided with an air vent |
| H | Aluminum alloy visual sliding door structure: | Product area closed, folding glass door |
| I | Others: | Aging cabinet product area each layer installed lighting is easy to work; A smoke alarm is installed inside the aging cabinet |
| 2 | Electronic load module configuration, measured power and aging quantity: | |
| A | Electronic load module control mode: | RS485 communication mode, host computer RS232 communication mode |
| B | Install electronic load module Model: | CP8104 (1-500V,0.05-10A, 150W/CH) (See specifications for details) |
| C | Electronic load module isolation mode: | Electronic load module channel isolation |
| D | Number of installed electronic load modules: | Load area, a total of 6 layers, 60 vehicles installed |
| E | Electronic load loading mode: | CC/CV/CR/CP/LED mode, any mode can be used in parallel channels |
| F | Electronic load design architecture: | No electrolytic capacitor, no relay, long life design scheme (independent intellectual property rights) |
| G | Number of electronic load module channels: | 4CH (4 channels) |
| H | Single pass rated power of load module: | 150W/CH Single-channel power supply under 150W |
| I | Number of vehicle aging channels: | 150W Power module 240CH for the aging cabinet |
| J | Number of parallel dual-channel aging products: | Aging of dual output power modules Less than 300W Number of power modules 120 bits |
