Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-DC03
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8500dollars/set
Packaging Details: Wooden case packing
Delivery Time: 40 work days
Supply Ability: 30sets/month
Trolley Size: |
2050*1250*2050mm |
Warranty Period: |
One Year Free Warranty |
Module Control Mode: |
RS485 Communication Mode, Upper Computer Uses RS232 Communication Mode |
Trolley Size: |
2050*1250*2050mm |
Warranty Period: |
One Year Free Warranty |
Module Control Mode: |
RS485 Communication Mode, Upper Computer Uses RS232 Communication Mode |

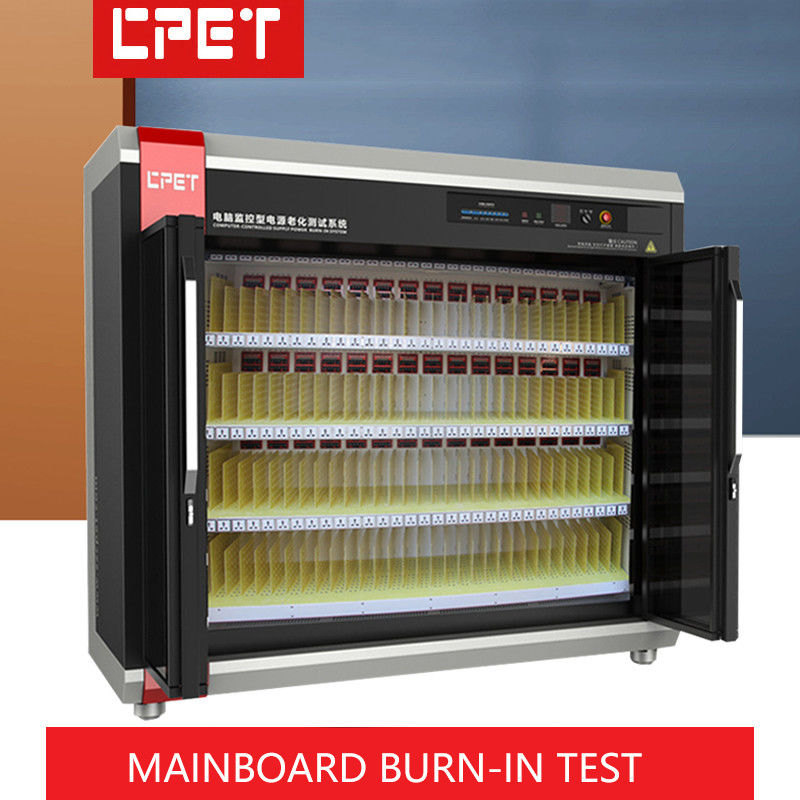

Power Control Panel Fusioncube Main Control Board Burn-In Test Equipment
Outstanding functions
| Burn-in cabinet structure and Burn-in quantity planning |
Trolley size (mm) | L2050*W1250*H2050mm |
| Number of trolley layers | 4 layers, product area depth 400mm, (6 Burn-in positions per layer) | |
| Trolley height | 175mm | |
| Trolley structure material | 2.0mm thick cold rolled sheet, | |
| Load area cooling method |
Top turbine exhaust fan top row type (easy to control the ambient temperature) |
|
| Layer insulation and anti-static method |
Epoxy insulation board with heat dissipation holes on the surface |
|
| Overall burn-in room structure |
Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine |
|
| Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quantity |
Energy recovery module control mode |
RS485 communication mode, upper computer uses RS232 communication mode |
| DC power supply capability | 10-100Vdc/1-30A/3kW (adjustable voltage and current) | |
| Electronic load module isolation mode |
Electronic load module channel adopts photoelectric isolation (communication and power supply isolation) |
|
| Electronic load carrying capacity |
8 channels 1-400Vdc/10A/150W(support QC3.0/PD3.1),4 channels 3-60VDC /40A/500W |
|
| Number of installed electronic loads |
1. A single burn-in cabinet is configured with CP8104/48 sets; 2. A single burn-in cabinet is configured with CP8512/24 sets |
|
| Number of burn-in products in the entire cabinet | 48 BMS controllers less than 3.2KW are aged in one cabinet | |
| electric control and temperature control device for power Burn-in cabinet |
Wiring | Customer specified interface; input port is pin socket |
| Panel function keys |
Input AC voltage display, start switch, emergency stop switch |
|
| Trolley power distribution and control mode |
380V three-phase five-wire distribution; Computer monitoring and automatic electric control |
|
| Trolley power distribution |
A single burn-in cabinet is 3000W*8/0.85≈23KW, and the measured power efficiency is calculated as 85% |
|
| Way to control |
The electric control includes manual/automatic switching, which is monitored by the computer in real time when burn-in. The electric control cabinet can extend the automatic switching function of AC voltage |
|
| Safety protection |
Equipment grounding protection, leakage switch protection, smoke alarm automatic power-off protection,etc. |
