Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-3001
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 7900dollars/set
Packaging Details: Wooden case packing
Delivery Time: 30 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Power Of Single Channel: |
96W/CH |
Quantity Of Load Channels: |
96CH |
Scope Of Load Voltage: |
8-420V |
Power Of Single Channel: |
96W/CH |
Quantity Of Load Channels: |
96CH |
Scope Of Load Voltage: |
8-420V |

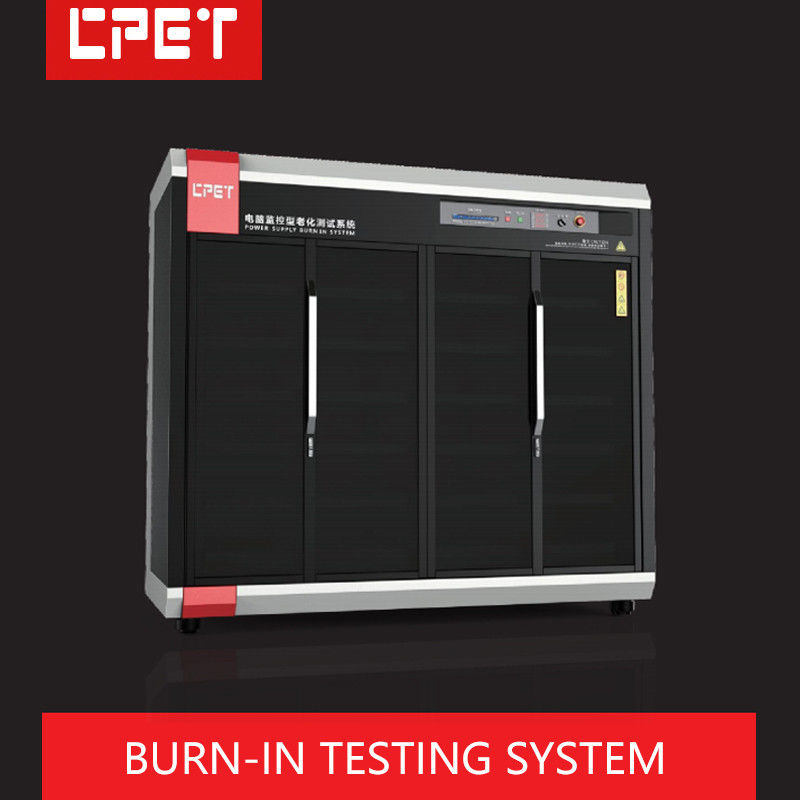

Burn-In Testing System Of LED Lamp With Led Power-Fired Aging Cabinet
| Model | CP-3003 | CP-3001 | CP-3002 |
| Power of single channel | 400W/CH | 96W/CH | 96W/CH |
| Quantity of load channels |
240CH | 96CH | 96CH |
| Scope of load voltage | 2-450V | 8-420V | 8-420V |
| Scope of load current | 0.05-10A/CH | 0.05-12A/CH | 0.05-12A/CH |
| Load precision | ±(1%+0.1%FS) | ±(1%+0.1%FS) | ±(1%+0.1%FS) |
| Load Model | Electronic load type | Energy Saving | Energy Saving |
| Load Mode | CC+CV Mode | CC+CV+CR+CP+LED Mode | CC+CV+CR+CP+LED Mode |
| Number for plies of product zone |
6 | ||
| Height for plies of product zone(mm) |
170 | ||
| Width of products zone(mm) |
Series CC mode 380 | ||
| Temperature control of products zone |
Temperature control type of products zone: normal temperature-60℃ | ||
| Structure material of trolley |
Elaborately processed and produced with cold-rolled sheet | ||
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power | ||
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | ||
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design | ||
| External dimension | 2050*1200*1900/custom design | ||
