Shenzhen CPET Electronics Co., Ltd. eng39@szcpet.com 86-0755-23427658
Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-300304
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8000dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Quantity Of Load Channels: |
240CH |
Scope Of Load Current: |
0.05-10A/CH |
Load Mode: |
CC+CV Mode |
Quantity Of Load Channels: |
240CH |
Scope Of Load Current: |
0.05-10A/CH |
Load Mode: |
CC+CV Mode |

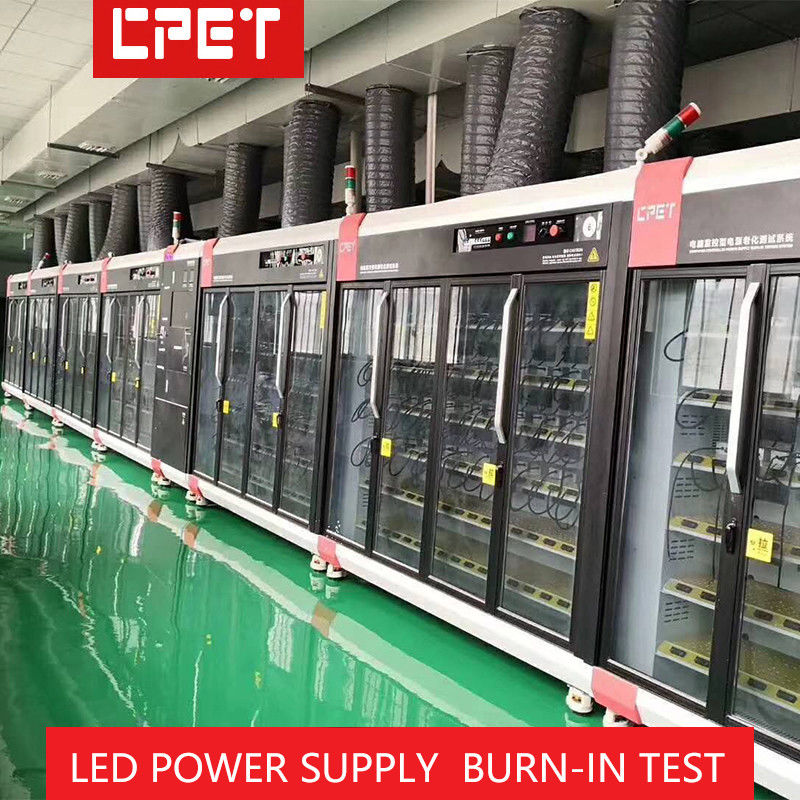

Computer Monitoring Aging Test Equipment Of LED Switching Power Supply
| Model | CP-300304 | CP-300404 | CP-300504 | CP-300104 |
| Power of single channel | 400W/CH | 100W/CH | 125W/CH | 96W/CH |
| Quantity of load channels | 240CH | 192CH | 192CH | 96CH |
| Scope of load voltage | 2-450V | 2-450V | 2-450V | 8-420V |
| Scope of load current | 0.05-10A/CH | 0.05-5A/CH | 0.05-10A/CH | 0.05-12A/CH |
| Load precision | ±(1%+0.1%FS) | ±(1%+0.1%FS) | ±(1%+0.1%FS) | ±(1%+0.1%FS) |
| Load Model | Electronic load type | Electronic load type | Electronic load type | Energy Saving |
| Load Mode | CC+CV Mode | CC+CV Mode | CC+CV Mode | CC+CV+CR+CP+LED Mode |
| Number for plies of product zone | 6 | |||
| Height for plies of product zone(mm) | 170 | |||
| Width of products zone(mm) | Series CC mode 380 | |||
| Temperature control of products zone | Temperature control type of products zone: normal temperature-60℃ | |||
| Structure material of trolley | Elaborately processed and produced with cold-rolled sheet | |||
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power | |||
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | |||
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design | |||
| External dimension | 2050*1200*1900/custom design | |||
