Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-300403
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8400dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Power Of Single Channel: |
100W/CH |
Warranty Period: |
12 Months Free Warranty |
Weight: |
400kg |
Power Of Single Channel: |
100W/CH |
Warranty Period: |
12 Months Free Warranty |
Weight: |
400kg |

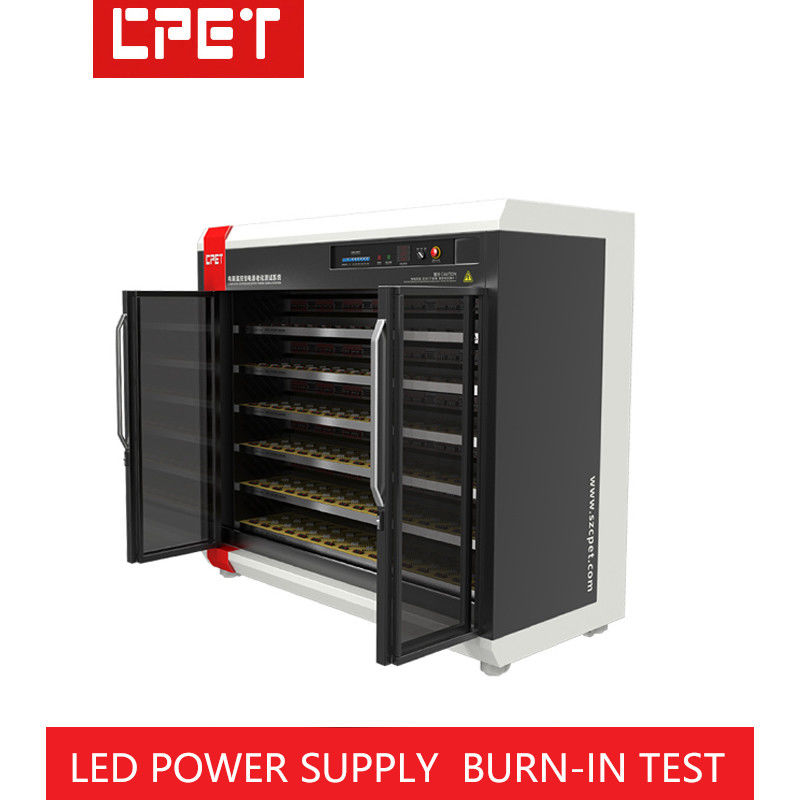

Isolated LED Power Supply Burn In Test Chamber Manufacturer Customized
| Model | CP-300403 |
| Power of single channel | 100W/CH |
| Quantity of load channels |
192CH |
| Scope of load voltage | 2-450V |
| Scope of load current | 0.05-5A/CH |
| Load precision | ±(1%+0.1%FS) |
| Load Model | Electronic load type |
| Load Mode | CC+CV Mode |
| Number for plies of product zone |
6 |
| Height for plies of product zone(mm) |
170 |
| Width of products zone(mm) |
Series CC mode 380 |
| Temperature control of products zone |
Temperature control type of products zone: normal temperature-60℃ |
| Structure material of trolley |
Elaborately processed and produced with cold-rolled sheet |
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power |
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design |
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design |
| External dimension | 2050*1200*1900/custom design |
