Shenzhen CPET Electronics Co., Ltd. eng39@szcpet.com 86-0755-23427658
Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-300502
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 7500dollars/set
Packaging Details: Wooden case packing
Delivery Time: 30 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Power Of Single Channel: |
125W/CH |
Load Mode: |
CC+CV Mode |
Scope Of Load Current: |
0.05-10A/CH |
Power Of Single Channel: |
125W/CH |
Load Mode: |
CC+CV Mode |
Scope Of Load Current: |
0.05-10A/CH |

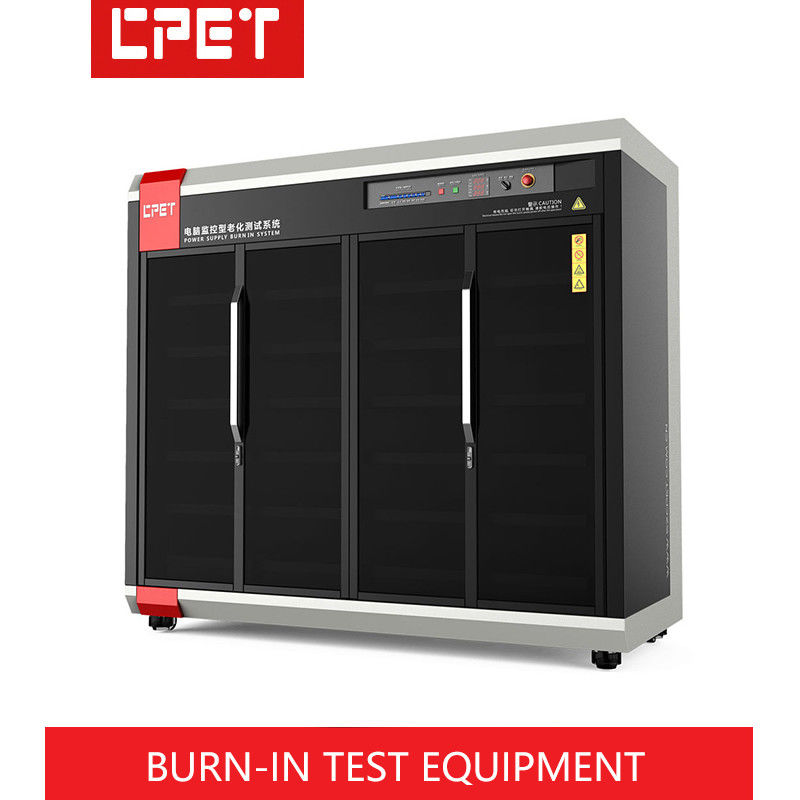

Led Aging Machine Test Equipment Manufacturer With Electronic Load Aging Vehicle
| Model | CP-300302 | CP-300402 | CP-300502 |
| Power of single channel | 400W/CH | 100W/CH | 125W/CH |
| Quantity of load channels | 240CH | 192CH | 192CH |
| Scope of load voltage | 2-450V | 2-450V | 2-450V |
| Scope of load current | 0.05-10A/CH | 0.05-5A/CH | 0.05-10A/CH |
| Load precision | ±(1%+0.1%FS) | ±(1%+0.1%FS) | ±(1%+0.1%FS) |
| Load Model | Electronic load type | Electronic load type | Electronic load type |
| Load Mode | CC+CV Mode | CC+CV Mode | CC+CV Mode |
| Number for plies of product zone | 6 | ||
| Height for plies of product zone(mm) | 170 | ||
| Width of products zone(mm) | Series CC mode 380 | ||
| Temperature control of products zone | Temperature control type of products zone: normal temperature-60℃ | ||
| Structure material of trolley | Elaborately processed and produced with cold-rolled sheet | ||
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power | ||
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | ||
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design | ||
| External dimension | 2050*1200*1900/custom design | ||
