Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-3002
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8700dollars/set
Packaging Details: Wooden case packing
Delivery Time: 30 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Power Of Single Channel: |
600W/CH |
Warranty Period: |
1 Year |
Scope Of Load Voltage: |
8-600V |
Power Of Single Channel: |
600W/CH |
Warranty Period: |
1 Year |
Scope Of Load Voltage: |
8-600V |

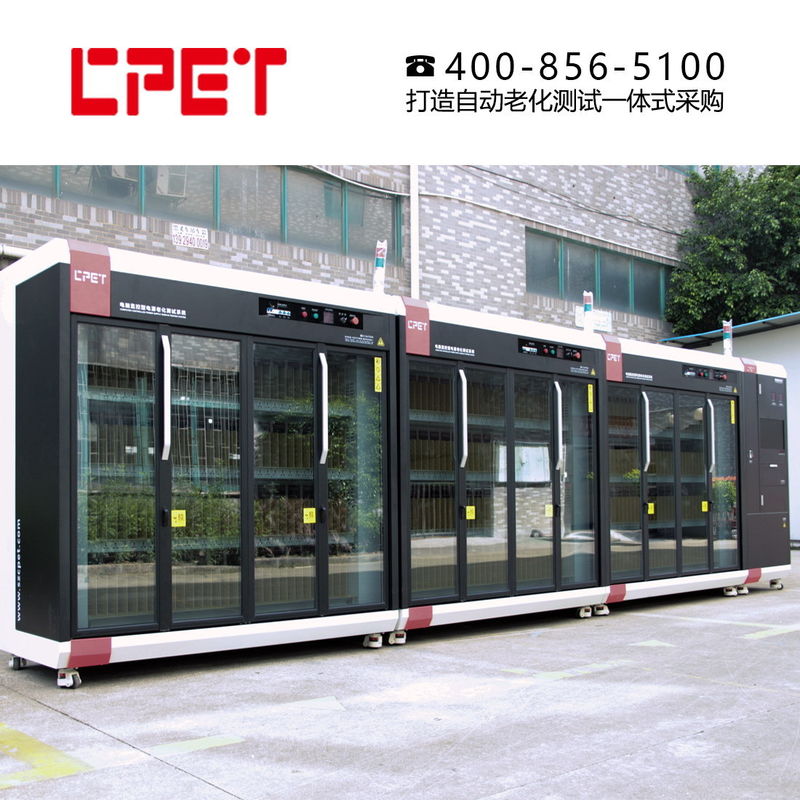

Burn-In Aging Test Equipment For Intelligent LED Drive Power Supply
| Model | CP-3003 | CP-3002 |
| Power of single channel | 400W/CH | 600W/CH |
| Quantity of load channels |
240CH | 96CH |
| Scope of load voltage | 2-450V | 8-600V |
| Scope of load current | 0.05-10A/CH | 0.05-12A/CH |
| Load precision | ±(1%+0.1%FS) | ±(1%+0.1%FS) |
| Load Model | Electronic load type | Energy Saving |
| Load Mode | CC+CV Mode | CC+CV+CR+CP+LED Mode |
| Number for plies of product zone |
6 | |
| Height for plies of product zone(mm) |
170 | |
| Width of products zone(mm) |
Series CC mode 380 | |
| Temperature control of products zone |
Temperature control type of products zone: normal temperature-60℃ | |
| Structure material of trolley |
Elaborately processed and produced with cold-rolled sheet | |
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power | |
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design | |
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design | |
| External dimension | 2050*1200*1900/custom design | |
