Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-NBQ828
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8650dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Trolley Size (mm): |
L2.05*W1.25*H2.05m |
Warranty: |
One Year Free Warranty |
Number Of Trolley Layers: |
6 Layers |
Trolley Size (mm): |
L2.05*W1.25*H2.05m |
Warranty: |
One Year Free Warranty |
Number Of Trolley Layers: |
6 Layers |

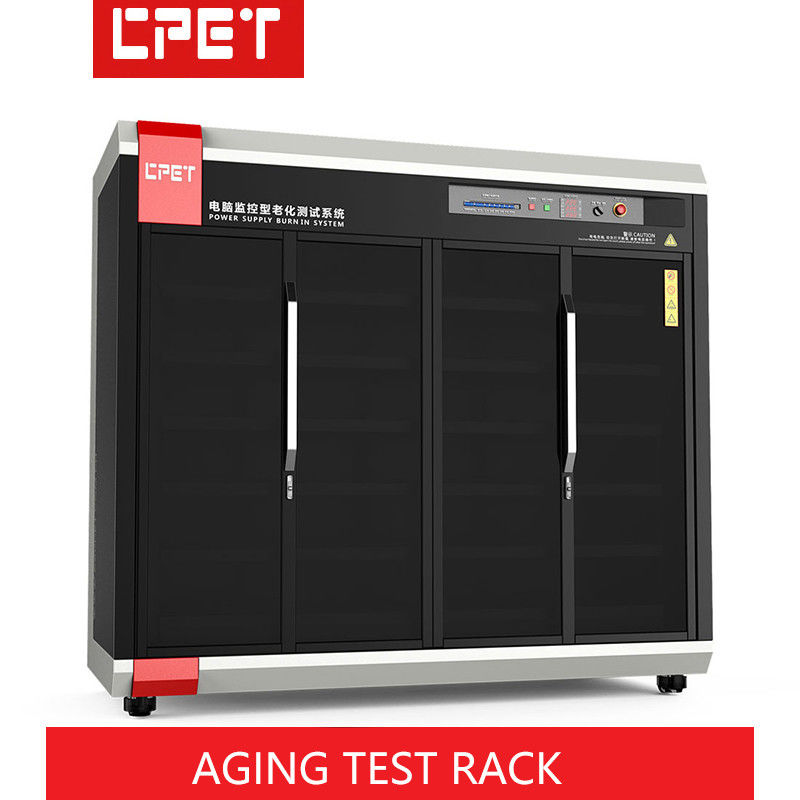

High-Power Energy-Saving Electronic Load Inverter Aging Test Rack
| Burn-in cabinet structure and Burn-in quantity planning |
Trolley size (mm) | L2050*W1250*H2050mm (size of a single Burn-in cabinet) |
| Number of trolley layers | 6 layers, product area depth 400mm, (6 Burn-in positions per layer) | |
| Trolley height | 175mm | |
| Trolley structure material | 2.0mm thick cold rolled sheet | |
| Load area cooling method | Top turbine exhaust fan top row type (easy to control the ambient temperature) | |
| Layer insulation and anti-static method | Epoxy insulation board with heat dissipation holes on the surface | |
| Overall burn-in room structure | Adopt mobile Burn-in split cabinet; beautiful appearance and easy to move and combine | |
| Introduction to energy recovery module configuration, power of the tested power supply and Burn-in quant |
Energy recovery module control method | RS485 communication mode, upper computer uses RS232 communication mode |
| Product burn-in mode | The burn-in process of the product is carried out by the way of relative drag | |
| Dc power isolation mode | Dc power channel adopts photoelectric isolation (communication and power supply isolation) | |
| Energy recovery module design architecture |
No relay, long life design scheme (independent intellectual property rights) | |
| Introduction to the main functions of the system |
Applicable to energy storage power,current converter, inverter, regurgitator,transverter, medical power supply and so on | |
| Free configuration of self-developed special monitoring software for power Burn-in, with independent intellectual property rights and no legal risks | ||
| Use programmable electronic load module to monitor output terminal voltage, current and power parameters | ||
| Dedicated monitoring software for Burn-in enjoys free final upgrade service, powerful expansion function, saving repeated investment in equipment | ||
| Burn-in parameters, time setting, ON/OFF sequence editing (test of the product being tested on and off), support for automatic voltage switching, load conversion and other functions can be programmed (Burn-in parameters can be automatically switched in a fixed time period) |
||
| The function of automatically turning off the power at the end of the Burn-in of the tested power supply is convenient for unattended | ||
| The computer automatically displays the quality of the tested power supply product, and multiple windows in the window are convenient for centralized management, which saves operators and improves production efficiency |
||
| The computer can store the Burn-in data report of the tested power supply, the process parameters of the tested power supply are easy to trace | ||
| RS232 to RS485 adopts photoelectric isolation converter to improve communication reliability and prevent lightning damage to equipment | ||
| Each computer can monitor 18 devices at the same time, (each serial port can connect to 63 slaves, and each computer supports up to 18 serial ports) | ||
| The power Burn-in monitoring software has a built-in help file, which is convenient for solving operation questions immediately | ||
