Shenzhen CPET Electronics Co., Ltd. eng39@szcpet.com 86-0755-23427658
Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-NBQ50
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8800dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Trolley Height: |
Cold Rolled Sheet |
Guarantee Period: |
1 Year |
Input Power: |
130kW |
Trolley Height: |
Cold Rolled Sheet |
Guarantee Period: |
1 Year |
Input Power: |
130kW |

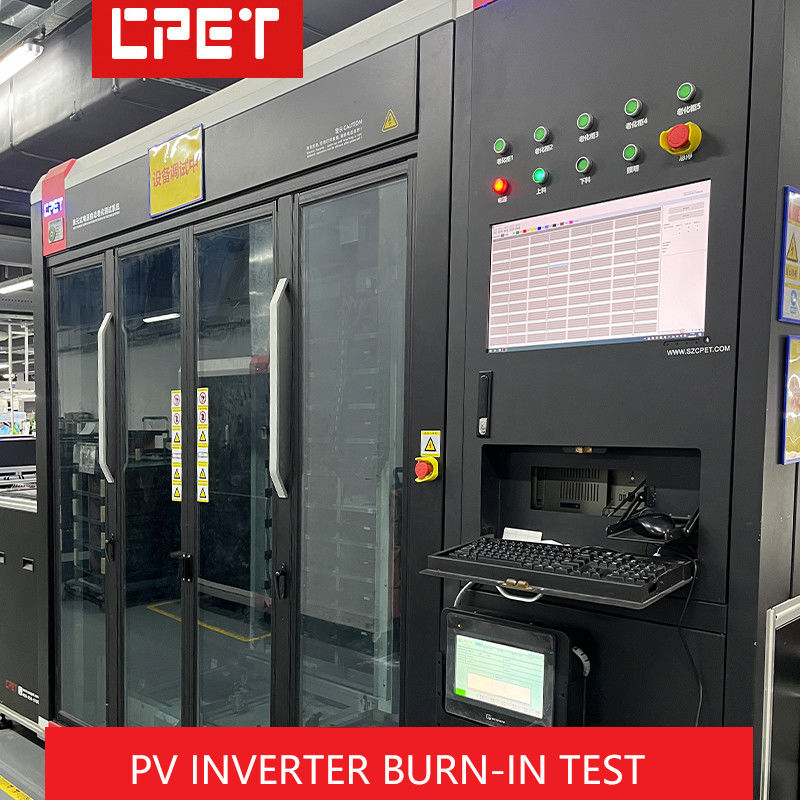

Burn-In Test Chamber Of Household PV Inverter Chinese Manufacturer
| System | System structure | 1 control cabinet + 2 burn-in cabinets |
| Overall size | 5100*1200*2050mm | |
| Total floor area | 5100*2200mm(Including operation area) | |
| Total input voltage | Three-phase five-wire system 220Vac (rated) | |
| Total input current | 100A | |
| Total input power | 50kW | |
| Application ambient temperature | 0-40℃ | |
| Environmental requirements | Materials comply with Rohs, WEEE requirements | |
| Safety requirements | Comply with IEC62368 international standard design requirements | |
| Burn-in cabinet | Burn-in bits/cabinet | 16 bits/cabinet |
| Burn-in bits/layer | 4 bits/layer | |
| Burn-in product power | 7kW/bit | |
| Burn-in product input voltage | 50-750Vdc/bit | |
| Burn-in product input current | 25A/bit | |
| Burn-in Product Load Category | 6.6kW/bit | |
| Burn-in product load current | 220Vac/50Hz | |
| DC Connector Type | MC4 photovoltaic connector (PV+/PV-/4 groups) | |
| Signal Connector Type | RJ45 (network port) | |
| Bit Status Indicator | No | |
| Input power | 130kW | |
| Feedback power | 105.6kW | |
| Constant temperature range | Room temperature+5°C-60°C | |
| Constant temperature accuracy | ±5°C | |
| Number of temperature control points | 5 | |
| Product area layers | 4 | |
| Bit space size | 425*550*350mm | |
| Minimum floor height | 300mm | |
| Top floor height | 1450mm | |
| Product area air duct direction | Left and right ventilation | |
| Cooling method | Air cooling | |
| Material | 1.5mm cold rolled sheet, epoxy sheet (laminate) | |
| Monitoring software |
Display running information |
Input voltage, current, power, output voltage
|
| Show status information |
Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current / No Output / Protection
|
|
| Statistics | Yield/CPK/Time Distribution | |
| MES docking | Support | |
| Scan speed | 5S | |
| Control cabinet | Control system | Window 10 |
| Communication method | Cable | |
| Type of protection |
Over current, leakage, over temperature, smoke, emergency stop
|
|
| Alarm method | Sound and light alarm, remote network | |
| Heat dissipation type | Air cooling | |
| Maintenance mode | Post maintenance |
