Product Details
Place of Origin: China
Brand Name: CPET
Model Number: CP-PCS52
Payment & Shipping Terms
Minimum Order Quantity: 2sets
Price: 8800dollars/set
Packaging Details: Wooden case packing
Delivery Time: 35 work days
Payment Terms: L/C
Supply Ability: 30sets/month
Total Input Current: |
100A*6 |
Guarantee Period: |
1 Year |
Input Power: |
300kW |
Total Input Current: |
100A*6 |
Guarantee Period: |
1 Year |
Input Power: |
300kW |

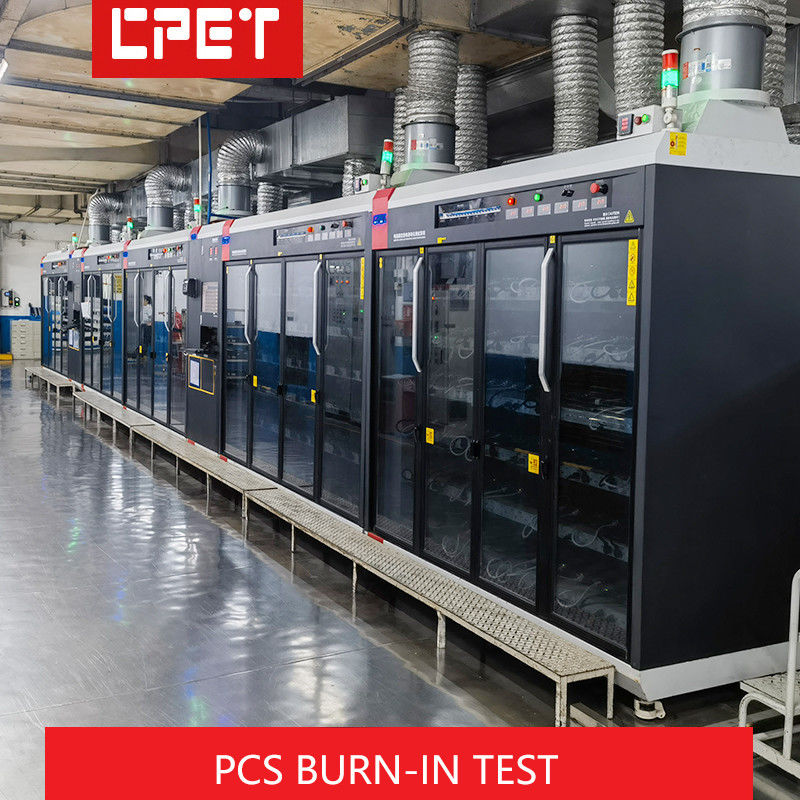

Burn-In Test Cabinet Support Customization For Power Conversion System(PCS)
| System | System structure | 1 control cabinet + 6 two-way source load cabinets |
| Overall size | 5800*860*2050mm | |
| Total floor area | 5800*1800mm(Including operation area) | |
| Total input voltage | Three-phase five-wire system 220Vac (rated) | |
| Total input current | 100A*6 | |
| Total input power | 50kW*6 | |
| Application ambient temperature | 0-40℃ | |
| Application environment humidity | 0-95% | |
| Fire protection requirements | Materials meet UL 94V0 rating | |
| Environmental requirements | Materials comply with Rohs, WEEE requirements | |
| Safety requirements | Comply with IEC62368 international standard design requirements | |
| Burn-in cabinet | Units/Cabinet | 2 bits/cabinet |
| Burn-in product DC power | 150kW/bit | |
| Burn-in product DC voltage | 150-800Vdc | |
| Burn-in product DC current | 500A/bit | |
| Burn-in product AC power | 150kW/bit | |
| Burn-in products AC voltage | 220/380Vac/50Hz Three-phase five-wire | |
| Burn-in product AC current | 300A/bit | |
| AC Connector Type | PA350 (L1/ L2/ L3/N/PE) | |
| DC Connector Type | DC bronze medal | |
| Signal Connector Type | RJ45 (network port) | |
| Input power | 300kW | |
| Feedback power | 280kW | |
| Volume size | 800*800*2050mm | |
| Product area air duct direction | Forward wind, upward wind | |
| Cooling method | Air cooling | |
| Material | 1.5mm cold rolled sheet | |
| Monitoring software |
Display accuracy | ±(1%+0.2%FS) |
| Control precision | ±(1%+0.2%FS) | |
| Bad way of reporting | Audible alarm | |
| Report format | CSV format |
